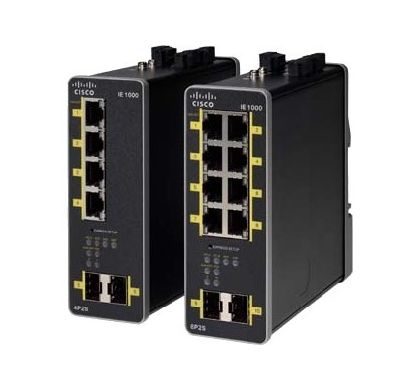

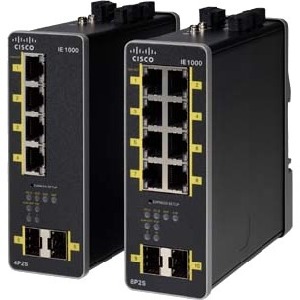

CISCO IE-1000-6T2T-LM 8 Ports Ethernet Switch

IE-1000-6T2T-LM
Please Call
Please contact us for pricing

Description

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
1000
Product Model:
IE-1000-6T2T-LM
Product Name:
IE 1000-6T2T-LM Industrial Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
8
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
8 x Fast Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • Fast Ethernet
Network Technology:
  • 100Base-TX

Network & Communication

Layer Supported:
2

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
Rail-mountable
Height:
127 mm
Width:
45.7 mm
Depth:
114.3 mm
Weight (Approximate):
567 g

Miscellaneous

Green Compliant:
Yes
