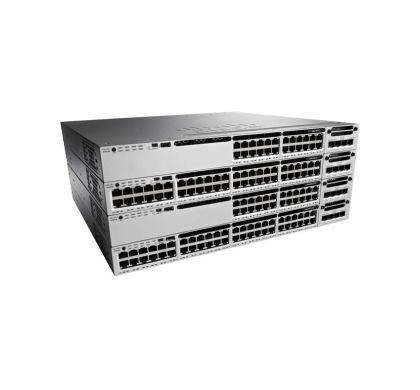

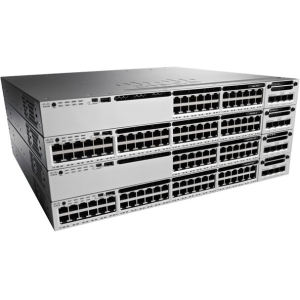

CISCO Catalyst WS-C3850-12S-S Manageable Layer 3 Switch
Description
The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
3850
Product Model:
WS-C3850-12S-S
Product Name:
Catalyst WS-C3850-12S-S Layer 3 Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Token Ring Port:
No
LRE Port:
No
Modular:
Yes
Management Port:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
15 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
Network Technology:
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
15
Expansion Slot Type:
- Network Interface Module (NIM)
- SFP
Shared SFP Slot:
No
Number of SFP Slots:
12
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Management:
- Web Based Management
- Telnet
- CLI
- DHCP
- QoS
- VLAN
- RMON I and II standards
- SNMP v1, v2c, and v3
- Syslog
- MIB
Memory
Standard Memory:
- 4 GB
Memory Technology:
DRAM
Flash Memory:
2 GB
Reliability
MTBF:
315840 Hour
Power Description
PoE Port:
No
Input Voltage:
- 120 V AC
- 230 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Desktop
- Rack-mountable
Height:
44.5 mm
Width:
444.5 mm
Depth:
449.6 mm
Weight (Approximate):
7.02 kg
Miscellaneous
Package Contents:
- Catalyst 3850-12S Layer 3 Switch
- 350WAC Power Supply
Certifications & Standards:
IEEE Standards:
- 802.1s
- 802.1w
- 802.11
- 802.1x
- 802.1x-Rev
- 802.3ad
- 802.3x
- 802.1D
- 802.1p
- 802.1Q
- 802.3
- 802.3z
- 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- KCC
- CNS13438 Class A
- EN55024
- CISPR24
- KN24
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- GOST
- NOM
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS-5
Warranty
Standard Warranty:
