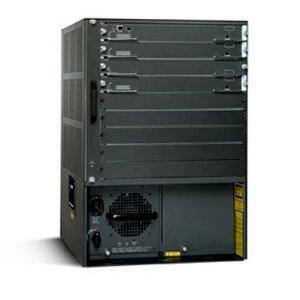

CISCO Catalyst 6509-E Switch Chassis

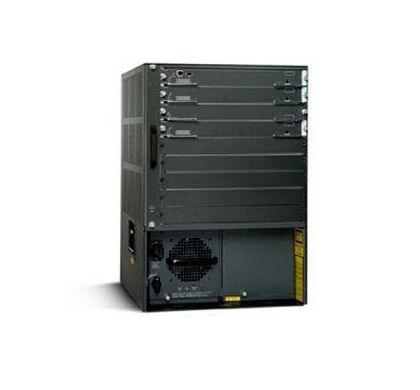

CISCO Catalyst 6509-E Switch Chassis
WS-C6509-E

This product has been discontinued by the manufacturer

Please visit

CISCO Switches & Bridges

for alternative options.

Description

The 9-slot Cisco Catalyst 6509-E Switch provides high port densities that are ideal for many wiring closet, distribution, and core network as well as data center deployments. The Cisco Catalyst 6509-E supports Cisco Catalyst 6500 Series end-to-end operational consistency benefits.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
6500
Product Model:
6509-E
Product Name:
6509-E Switch Chassis
Product Type:
Switch Chassis

I/O Expansions

Number of Total Expansion Slots:
9

Network & Communication

Layer Supported:
2

Physical Characteristics

Form Factor:
Rack-mountable
Height:
444.5 mm
Width:
549.7 mm
Depth:
462.3 mm
Weight (Approximate):
27.22 kg

Miscellaneous

Additional Information:
  • Scalable Performance
  • Support large numbers of IEEE 802.3af PoE devices
  • Ideal for enterprises and service providers seeking to reduce total cost of ownership (TCO)
  • Clock and VTT Modules: Two replaceable clock modules (CLK-7600=) provide clocking signals to the EOBC channel and the switching bus.
  • The Cisco Catalyst 6509-E provides maximum uptime with redundancy and rapid (1 to 3 seconds) stateful failover across supervisor engines.
  • The Cisco Catalyst 6509-E supports both Cisco Catalyst OS and Cisco IOS Software
  • Provides integrated IP Communications throughout all Cisco Catalyst 6500 Series platforms
  • Supports up to eight Catalyst 6500 series modules
  • WS-C6500-SFM and WS-X6500-SFM2 Switch Fabric Modules must be installed in slot 5 or slot 6
Backplane Bandwidth:
  • 32 GBps shared bus
  • 720 GBps switch fabric
Supervisor Engines:
  • Supervisor Engine 1 and Supervisor Engine 2 are installed in slot 1 or slot 2
  • Supervisor Engine 32 and Supervisor Engine 720 are installed in slot 5 or slot 6
Cisco Catalyst 6500 Series Modules Supported: Supervisor engines
  • Fast Ethernet modules (with IEEE 802.3af Power over Ethernet [PoE])
  • Gigabit Ethernet modules (with IEEE 802.3af PoE)
  • 10 Gigabit Ethernet modules
  • Flex WAN modules
  • Shared Port Adaptors/SPA Interface Processors
  • Multi-Gigabit services modules (content services ,firewall, intrusion detection, IP Security [IPSec], VPN, network analysis, and Secure Sockets Layer [SSL] acceleration)

Warranty

Standard Warranty:
90 Day
