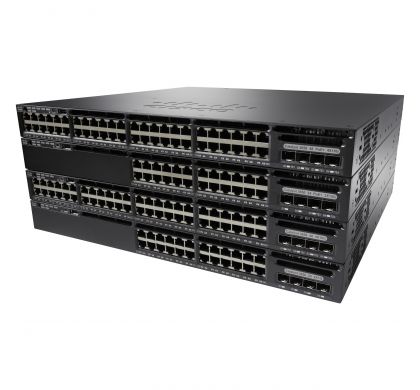

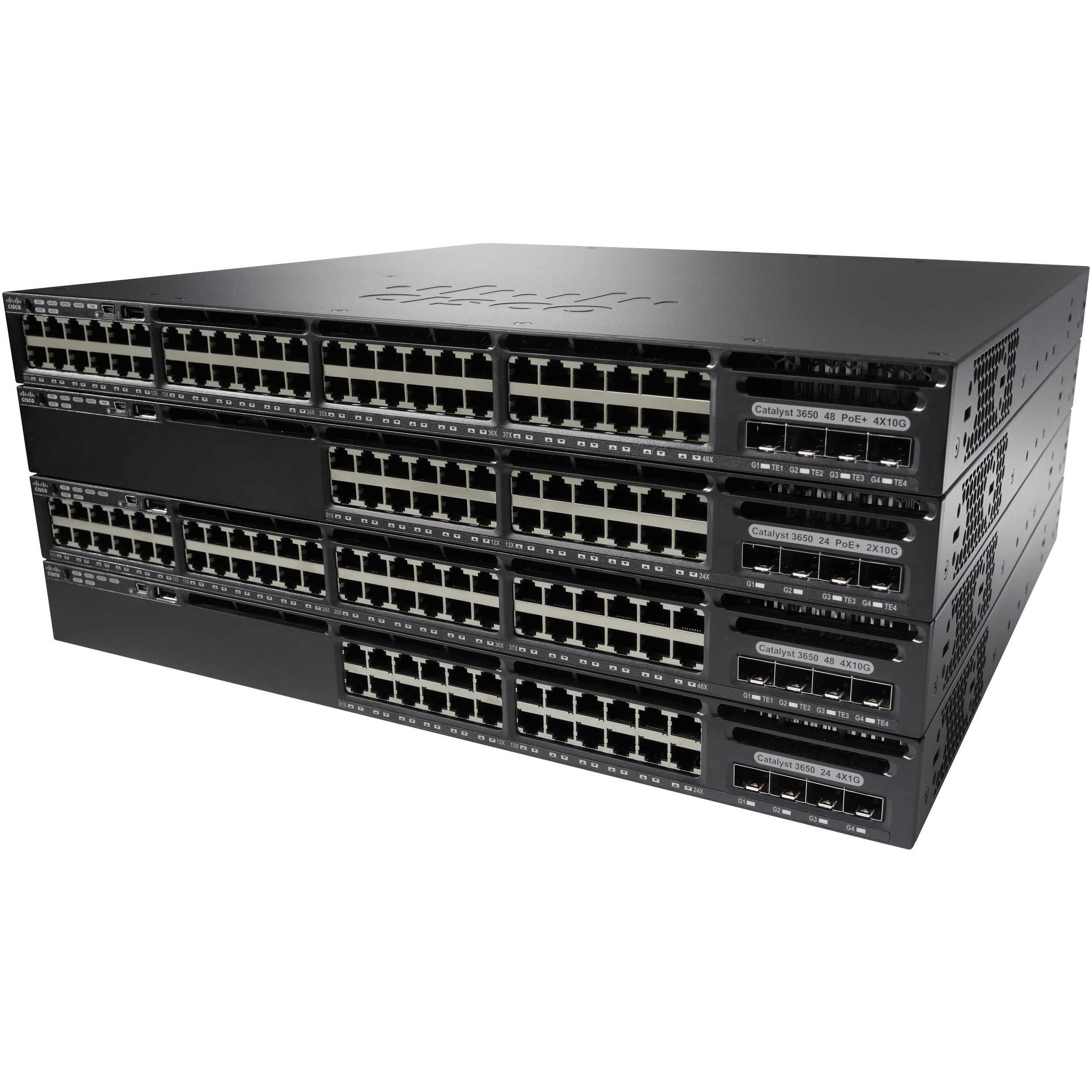

CISCO Catalyst 3650-24PDM-E 24 Ports Manageable Layer 3 Switch
Description
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. The Cisco Catalyst 3650 Series Switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. They can help you increase wireless productivity and reduce your TCO.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
3650
Product Model:
3650-24PDM-E
Product Name:
Catalyst 3650-24PDM-E Switch
Product Type:
Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
No
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP+
Shared SFP Slot:
No
Number of SFP Slots:
2
Network & Communication
Layer Supported:
4
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Standalone
Height:
43.9 mm
Width:
444.5 mm
Depth:
447.7 mm
Weight (Approximate):
7.26 kg
