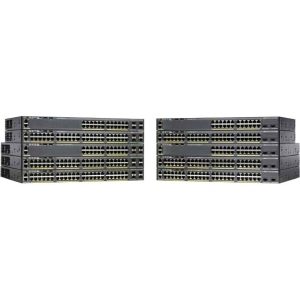

CISCO Catalyst 2960X-24PSQ-L 24 Ports Manageable Ethernet Switch

WS-C2960X-24PSQ-L
Please Call
Please contact us for pricing

Description

Catalyst 2960-X series Software Features

All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.

LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.

Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960-X
Product Model:
2960X-24PSQ-L
Product Name:
Catalyst 2960X-24PSQ-L Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
Yes
Number of PoE Ports:
3
Number of PoE+ Ports:
3
Number of Network (RJ-45) Ports:
20
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Expansion Slot
  • 26 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
  • Category 5
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Number of SFP Slots:
2

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • Web-based Management
    • VLAN
    • QoS
    • Syslog
    • Telnet
    • RMON I, II
    • SNMP v1, v2c, v3
    • DHCP
    • CLI

Memory

Standard Memory:
  • 512 MB
Memory Technology:
DRAM
Flash Memory:
128 MB

Reliability

MTBF:
462680 Hour

Power Description

PoE Port:
Yes
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
Rack-mountable
Height:
44.5 mm
Width:
444.5 mm
Depth:
368.3 mm
Weight (Approximate):
5.81 kg

Miscellaneous

System Requirements:
  • Disk space: 200 MB
  • Hardware: PC with 1 GHz
  • Memory: 1 GB
  • PC hardware: 1 GHz
  • Screen Resolution: 1024 x 768
Operating Systems:
  • Windows 2000 Professional (Service Pack 4 or later)
  • Windows 2003 Server
  • Windows XP Professional (Service Pack 2 or later)
  • Windows Vista Ultimate
  • Windows 7
  • Macintosh OS X
