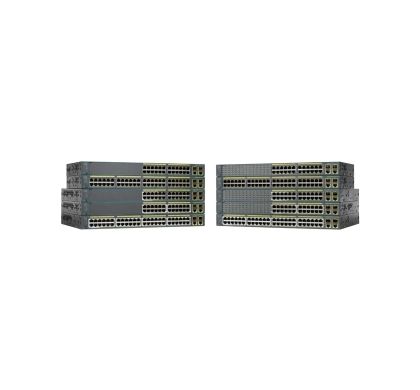

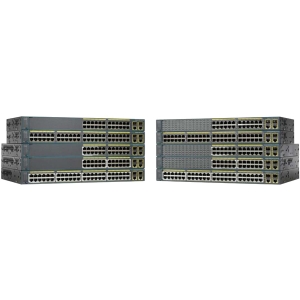

CISCO Catalyst 2960-Plus 24LC-L 24 Ports Manageable Ethernet Switch

CISCO Catalyst 2960-Plus 24LC-L 24 Ports Manageable Ethernet Switch
WS-C2960+24LC-L
Please Call
Please contact us for pricing

Description

Cisco EnergyWise

Cisco EnergyWise™ empowers IT teams to measure and manage the power consumed by devices connected to the network, providing measurable energy savings and reduced greenhouse gas emissions. EnergyWise policies can be used to control the power consumed by PoE-powered endpoints, desktop and data-center IT equipment, and a wide range of building infrastructure. EnergyWise technology is included on all Cisco Catalyst 2960-Plus Series Switches.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960-Plus
Product Model:
2960-Plus 24LC-L
Product Name:
Catalyst 2960-Plus 24LC-L Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
Yes
Number of PoE Ports:
8
Stack Port:
No
Number of Network (RJ-45) Ports:
16
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Expansion Slot
  • 2 x Gigabit Ethernet Uplink
  • 24 x Fast Ethernet Network

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:
  • Category 5
Ethernet Technology:
  • Fast Ethernet
Network Technology:
  • 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • Web-based Management
    • Telnet
    • MIB
    • Syslog
    • RMON
    • SNMP v1, v2c, v3
    • VLAN
    • QoS
    • DHCP

Memory

Standard Memory:
  • 128 MB
Memory Technology:
DRAM
Flash Memory:
64 MB

Reliability

MTBF:
498000 Hour

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
Rack-mountable
Height:
43.9 mm
Width:
449.6 mm
Depth:
332 mm
Weight (Approximate):
5.44 kg

Miscellaneous

Certifications & Standards:
IEEE Standards:
  • 802.1D
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.1X
  • 802.1ab
  • 802.3ad
  • 802.3af
  • 802.3ah
  • 802.3x
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
Safety:
  • UL 60950-1 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • AS/NZS 60950-1
EMC-Emissions & Immunity:
  • 47CFR Part 15 (CFR 47) Class A
  • AS/NZS CISPR22 Class A
  • CISPR22 Class A
  • EN55022 Class A
  • ICES003 Class A
  • VCCI Class A
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class A
  • CNS13438 Class A
  • EN55024
  • CISPR24
  • EN300386
  • KN24
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
90 Day
