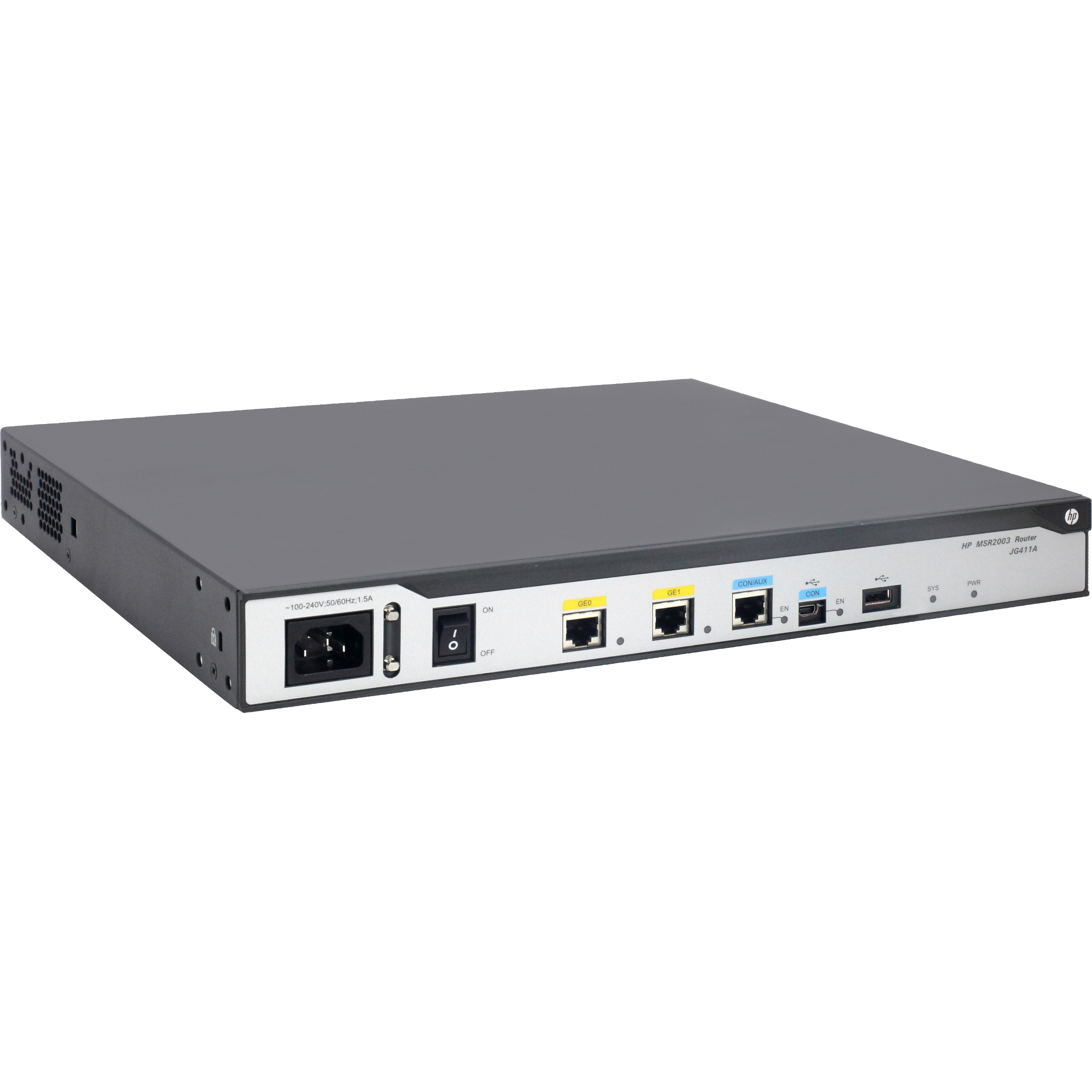

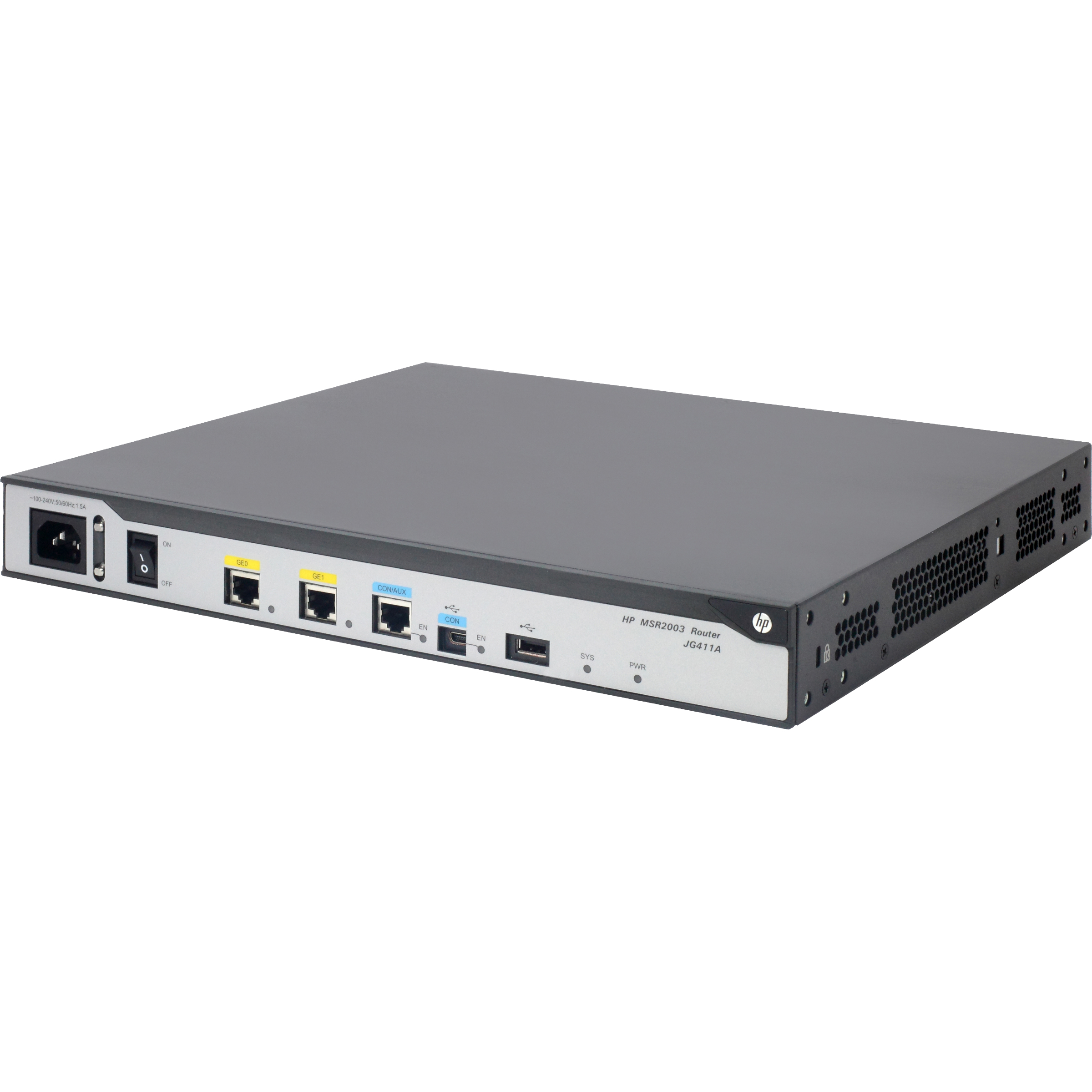

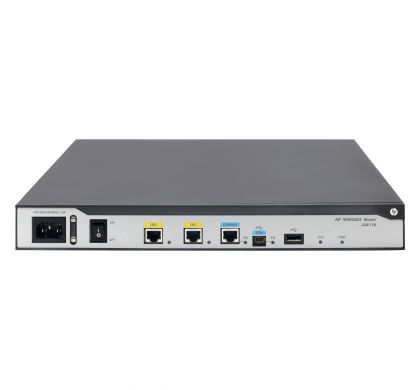

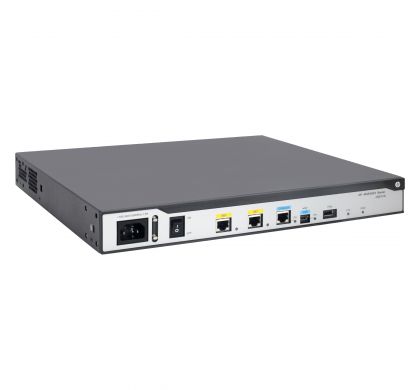

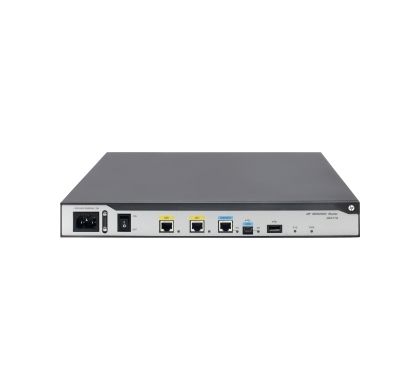

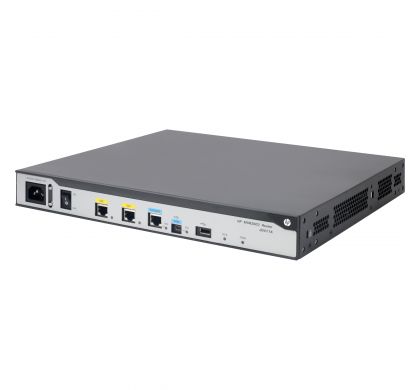

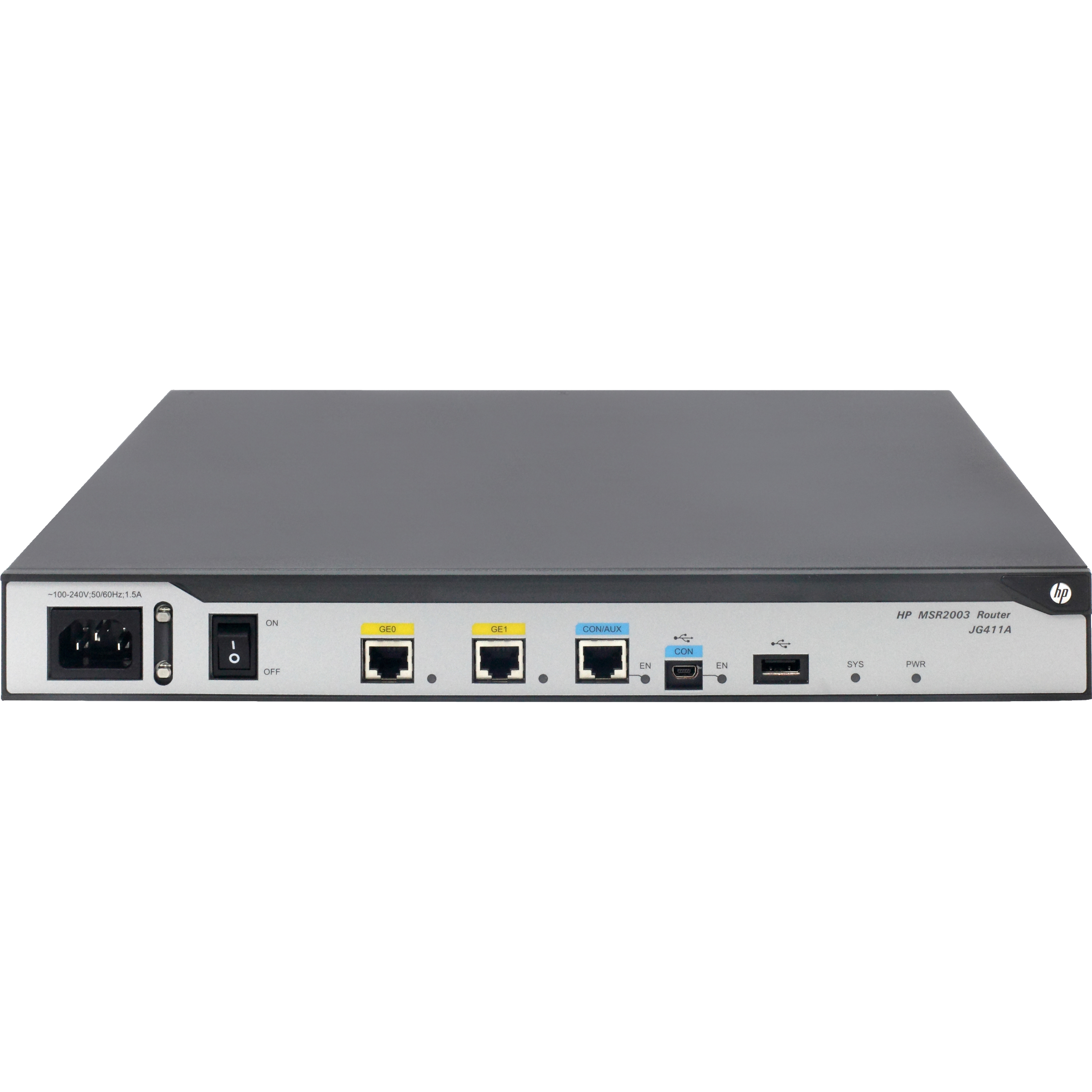

HPE HP MSR2003 Router - 1U

HPE HP MSR2003 Router - 1U
JG411A

This product has been discontinued by the manufacturer

Please visit

HPE Routers & Gateways

for alternative options.

Description

The HP MSR2000 router series is a second generation HP Multi-Service Router (MSR G2) that supports HP FlexBranch solution as part HP's overall comprehensive HP FlexNetwork architecture. The HP MSR2000 router series features a modular design that delivers unmatched application services for small to medium sized branch offices while reducing complexity, simplifying configuration, deployment and management.

The MSR2000 router series provides a full-featured, resilient routing platform, including IPv6 and MPLS, up to 1 Mpps forwarding capacity and 400 Mbps of IPsec VPN encrypted throughput. The MSR2000 router multi-core processors ensures high performance and reliable routing, switching, SIP/voice, 3G/4G WAN and security services all in one device.

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Series:
MSR2000
Product Model:
MSR2003
Product Name:
MSR2003 AC Router
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
2
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
2

I/O Expansions

Number of Total Expansion Slots:
3
Expansion Slot Type:
  • Smart Interface Card (SIC)

Network & Communication

Network Technology:
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet

Management & Protocols

Security Features:
    • IPSec
    • DES
    • 3DES
    • 128/192/256-bit AES
    • ACL
    • MD5
    • SHA-1
    • TACACS+
    • RADIUS
    • NAT
    • NAC
    • SSHv2
    • URL Filtering

Memory

Standard Memory:
  • 1 GB
Maximum Memory:
1 GB
Memory Technology:
SDRAM
Flash Memory:
256 MB

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
44.2 mm
Width:
359.9 mm
Depth:
300 mm
Weight (Approximate):
3.45 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • AS/NZS 60950
  • EN 60825-1
  • EN 60825-2
  • IEC 60950-1
  • CAN/CSA-C22.2 No. 60950-1-03
  • EN 60950-1/A11
  • FDA 21 CFR Subchapter J
Emissions:
  • EN 55022 Class A
  • ICES-003 Class A
  • ANSI C63.4 2003
  • ETSI EN 300 386 V1.3.3
  • AS/NZS CISPR 22 Class A
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-3-2:2006
  • EN 61000-3-3:1995 +A1:2001+A2:2005
  • EMC Directive 2004/108/EC
  • FCC (CFR 47, Part 15) Class A
  • EN 55024:1998+ A1:2001 + A2:2003
  • EN 61000-4-11:2004
  • EN 61000-4-8:2001
Telecom:
  • FCC part 68
  • CS-03
IEEE Standards:
  • 802.1D
  • 802.1w
  • 802.1s
  • 802.1Q
  • 802.3
  • 802.1X
  • 802.3ab
  • 802.1p
Green Compliant:
Yes
