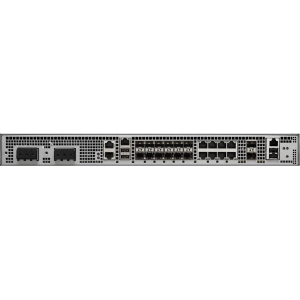

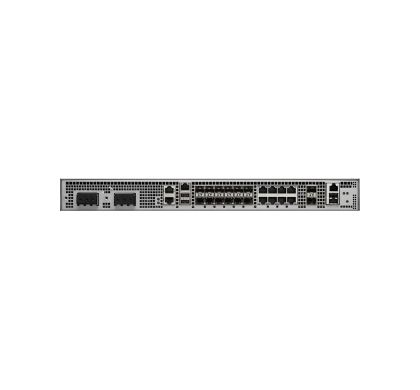

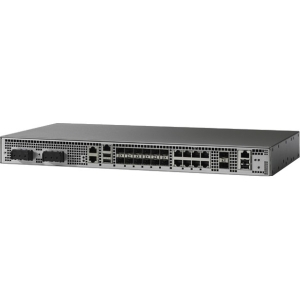

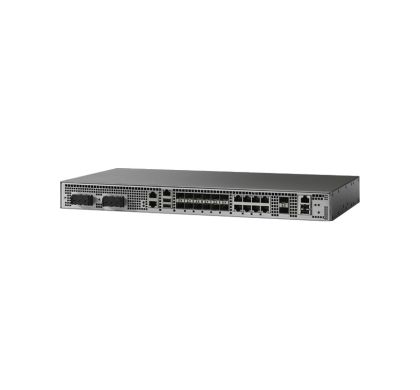

CISCO ASR-920-24SZ-M Router
Description
The Cisco® ASR 920 Series Aggregation Services Router (ASR) is a full-featured converged access platform designed for the cost-effective delivery of wireline and wireless services. These temperature-hardened, high-throughput, small-form-factor, low-power-consumption routers are optimized for mobile backhaul and business applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer. The Cisco ASR 920 Series offers key Carrier Ethernet features that simplify network operation; you can use them for premium services with enhanced service-level agreements (SLAs). An optional "pay-as-you-grow" feature and service-activation model makes the Cisco ASR 920 Series flexible and cost-effective.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 920
Product Model:
ASR-920-24SZ-M
Product Name:
ASR-920-24SZ-M Router
Product Type:
Router
Interfaces/Ports
Total Number of Ports:
28
Network & Communication
Network Technology:
- 1000Base-X
- 10GBase-X
Ethernet Technology:
- 10 Gigabit Ethernet
Power Description
PoE Port:
No
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
43.7 mm
Width:
444.5 mm
Depth:
239.5 mm
Weight (Approximate):
3.86 kg
