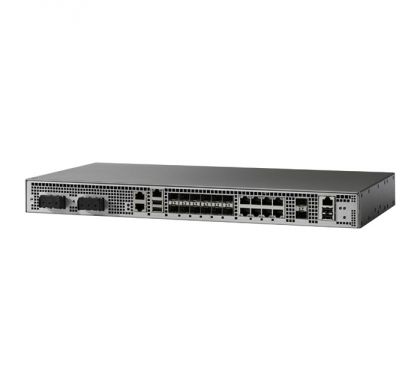

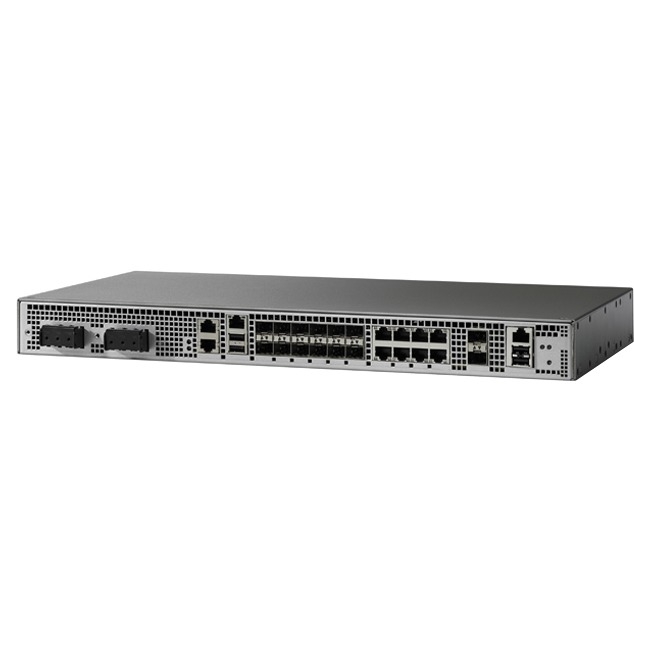

CISCO ASR-920-12CZ-D Router - 1U
Description
Cisco® ASR 920 Series Aggregation Services Routers are full-featured converged access platforms designed for the cost-effective delivery of wireline and wireless services. They are temperature hardened, high-throughput, small form factor, low-power-consumption routers optimized for mobile backhaul, residential, and business service applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer. Designed around key Carrier Ethernet features that simplify network operation, the Cisco ASR 920 Series enables premium services with enhanced service-level agreement (SLA) capabilities. An optional "pay-as-you-grow" feature and service activation model gives service providers a flexible, cost-effective solution.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 920
Product Model:
ASR-920-12CZ-D
Product Name:
ASR-920-12CZ-D Router
Product Type:
Router
Interfaces/Ports
Total Number of Ports:
8
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
8
I/O Expansions
Number of Total Expansion Slots:
14
Expansion Slot Type:
- SFP
- SFP+
Network & Communication
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
Ethernet Technology:
- 10 Gigabit Ethernet
Management & Protocols
Security Features:
- ACL
- L2VPN
- L3VPN
Memory
Standard Memory:
- 4 GB
Memory Technology:
DRAM
Flash Memory:
2 GB
Power Description
PoE Port:
No
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Desktop
Height:
43.2 mm
Width:
444.5 mm
Depth:
231.1 mm
Weight (Approximate):
3.58 kg
Miscellaneous
Certifications & Standards:
- IEEE1588-2008
- UL 60950-1, 2nd edition
- CAN/CSA C22.2 No. 60950-1-07 2nd edition
- IEC 60950-1, 2nd edition
- EN 60950-1, 2nd edition
- AS/NZS 60950.1:2003
- FCC CFR47 Part 15 Class A
- EN55022, class A
- CISPR22, class A
- ICES-003, class A
- EN 300 386, class A
- VCCI, class A
- KN22, class A
- EN61000-3-2 to EN61000-3-3
- EN 300 386
- EN 61000-6-1
- EN 50082-1
- CISPR24
- EN 55024
- KN 24
- EN 50121-4
- EN/KN 61000-4-2 to EN/KN 61000-4-6
- EN/KN 61000-4-8
- EN/KN 61000-4-11
Warranty
Standard Warranty:
90 Day
