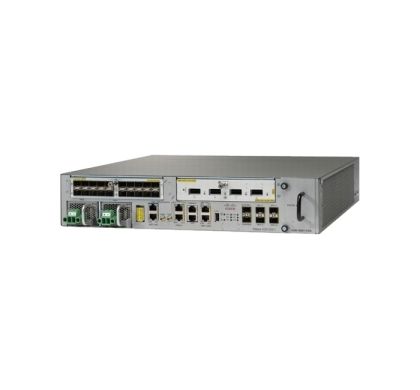

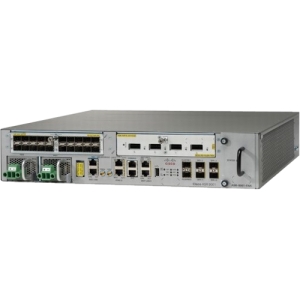

CISCO ASR 9001 Router Chassis - 2U

CISCO ASR 9001 Router Chassis - 2U
ASR-9001

This product has been discontinued by the manufacturer

Please visit

CISCO Routers & Gateways

for alternative options.

Description

Cisco ASR 9000 Series Aggregation Services Routers deliver exceptional scale, service flexibility, and high availability to Carrier Ethernet transport networks. The routers are powered by Cisco IOS XR Software, an innovative self-healing, distributed operating system designed for always-on operation. This is the same operating system that powers industry-leading routers such as the Cisco CRS Carrier Routing System, bringing the same reliability, scalability, performance, and comprehensive features that have made the Cisco CRS the dominant entity in the service provider core. Cisco IOS XR Software also allows for an end-to-end IP/MPLS solution to service provider requirements based on the same software, thereby reducing the operational complexity of managing multiple operating systems. The Cisco ASR 9000 Series further enhances the IP Next-Generation Network (IP NGN) Carrier Ethernet design for converged, resilient, intelligent, and scalable transport of consumer, business, wholesale, and mobile services.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 9000
Product Model:
ASR 9001
Product Name:
ASR 9001 Router
Product Type:
Router Chassis

Interfaces/Ports

Management Port:
Yes

I/O Expansions

Number of Total Expansion Slots:
7
Expansion Slot Type:
  • SFP+
  • Port Adapter

Network & Communication

VoIP Supported:
No

Memory

Standard Memory:
  • 8 GB

Power Description

PoE Port:
Yes
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
88.2 mm
Width:
442.5 mm
Depth:
469.9 mm
Weight (Approximate):
13.70 kg

Miscellaneous

Certifications & Standards:
NEBS:
  • SR-3580: NEBS Criteria Levels (Level 3)
  • GR-1089-CORE: NEBS EMC and Safety
  • GR-63-CORE: NEBS Physical Protection
  • VZ.TPR.9205: Verizon TEEER
ETSI Standards:
  • EN300 386: Telecommunications Network Equipment (EMC)
  • ETSI 300 019 Storage Class 1.1
  • ETSI 300 019 Transportation Class 2.3
  • ETSI 300 019 Stationary Use Class 3.1
  • EN55022: Information Technology Equipment (Emissions)
  • EN55024: Information Technology Equipment (Immunity)
  • EN50082-1/EN-61000-6-1: Generic Immunity Standard
EMC Standards:
  • FCC Class A
  • ICES 003 Class A
  • AS/NZS 3548 Class A
  • CISPR 22 (EN55022) Class A
  • VCCI Class A
  • BSMI Class A
  • IEC/EN 61000-3-2: Power Line Harmonics
  • IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
  • EN 50121-4: Railway EMC
Immunity:
  • IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
  • IEC/EN-61000-4-3: Radiated Immunity (10V/m)
  • IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
  • IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
  • IEC/EN-61000-4-5: Signal Ports (1kV)
  • IEC/EN-61000-4-5: Surge DC Port (1kV)
  • IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
  • IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
  • IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
Safety:
  • UL/CSA/IEC/EN 60950-1
  • IEC/EN 60825 Laser Safety
  • ACA TS001
  • AS/NZS 60950
  • FDA: Code of Federal Regulations Laser Safety

Warranty

Standard Warranty:
90 Day
