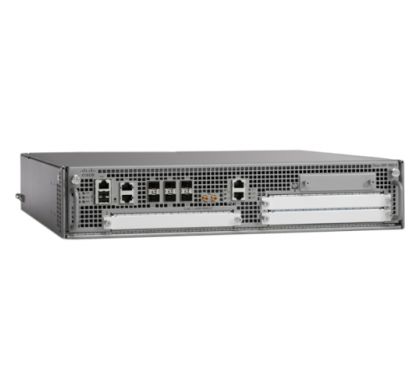

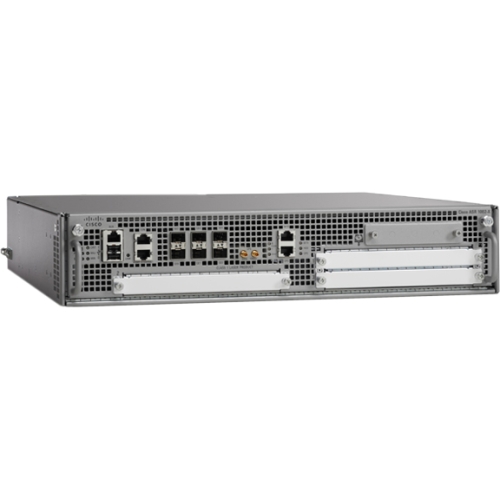

CISCO ASR 1002-X Router - 2U

CISCO ASR 1002-X Router - 2U
ASR1002X-5G-K9
Please Call
Please contact us for pricing

Description

The Cisco ASR 1000 Series provides a significant enhanced value compared to prior generations of Cisco midrange routing solutions by providing more than tenfold performance improvement with services running. Additionally, the routers have hardware and software redundancy, as well as an industry-leading high-availability design.

The Cisco ASR 1000 Series delivers multiple services embedded in the Cisco QuantumFlow Processor at wire speeds from 2.5 to 100 Gbps. The services supported on the Cisco QuantumFlow Processor include security services (for example, encryption and firewall), quality of service (QoS), Network-Based Application Recognition (NBAR), Cisco IOS® Flexible Packet Matching (FPM), broadband aggregation, and Cisco Unified Border Element (SP Edition) (formerly called Session Border Controller, or SBC), among others.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 1000
Product Model:
ASR 1002-X
Product Name:
ASR1002-X, 5G, K9, AES License
Product Type:
Router

Interfaces/Ports

USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No

I/O Expansions

Number of Total Expansion Slots:
9
Expansion Slot Type:
  • Shared Port Adapter
  • SFP (mini-GBIC)

Network & Communication

Network Technology:
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet
VoIP Supported:
Yes

Management & Protocols

Security Features:
    • SSH
    • AES
    • DES
    • 3DES
    • IPsec
    • Firewall

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
16 GB
Memory Technology:
DRAM

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
88.9 mm
Width:
436.9 mm
Depth:
558.8 mm
Weight (Approximate):
17.35 kg

Miscellaneous

Certifications & Standards:
Network Equipment Building Standards (NEBS):
  • GR-1089
  • GR-63
EMC Standards:
  • FCC 47 CFR Part 15 Class A
  • VCCI Class A
  • AS/NSZ Class A
  • ICES-003 Class A
  • EN55022/CISPR 22 Information Technology Equipment (Emissions)
  • EN55024/CISPR 24 Information Technology Equipment (Immunity)
  • EN300 386 Telecommunications Network Equipment (EMC)
  • EN50082-1/EN61000-6-1 Generic Immunity Standard
  • KN22 Class A
CE Marking:
  • UL60950-1
  • CSA C22.2 No. 60950-1-03
  • EN 60950-1
  • IEC 60950-1
  • AS/NZS 60950.1

Warranty

Standard Warranty:
90 Day
