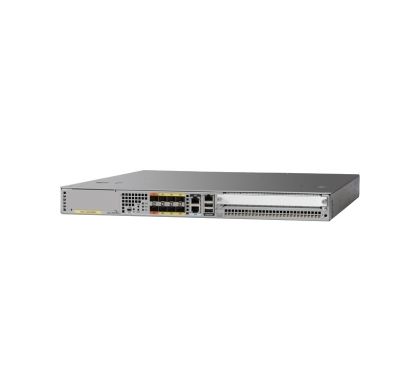

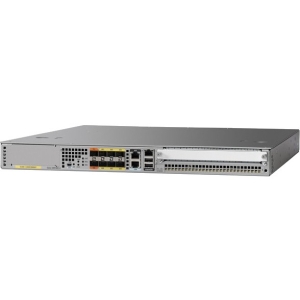

CISCO ASR 1001-X Router

CISCO ASR 1001-X Router
ASR1001X-5G-K9
Please Call
Please contact us for pricing

Description

Cisco® ASR 1000 Series Aggregation Services Routers aggregate multiple WAN connections and network services, including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design.

The latest addition to the Cisco ASR Family is the Cisco ASR 1001-X Router, a single-rack-unit (RU) router supporting 2.5- to 20-Gbps forwarding capacity. Cisco ASR 1001-X Router speeds can be "turned up" incrementally to as much as 20 Gbps with a simple throughput upgrade license, rather than having to purchase additional hardware blades or new routers.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 1000
Product Model:
ASR 1001-X
Product Name:
ASR 1001-X Router
Product Type:
Router

Interfaces/Ports

USB:
Yes
Powerline:
No
Management Port:
No
Token Ring Port:
No
Serial V.35 Interface:
No

I/O Expansions

Number of Total Expansion Slots:
9
Expansion Slot Type:
  • Network Interface Module (NIM)
  • Embedded Service Processor
  • SFP+
  • SFP (mini-GBIC)
  • Shared Port Adapter

Network & Communication

Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
Ethernet Technology:
  • 10 Gigabit Ethernet

Management & Protocols

Security Features:
    • NAT
    • IPsec
    • VPN
    • Cisco Zone-Based Firewall
    • Thread Defense
    • Deep Packet Inspection (DPI)
    • Cisco Unified Border Element

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DRAM

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
Rack-mountable
Height:
43.4 mm
Width:
439.4 mm
Depth:
571.5 mm

Miscellaneous

Certifications & Standards:
EMC:
  • FCC 47 CFR Part 15 Class A
  • VCCI Class A
  • AS/NSZ Class A
  • ICES-003 Class A
  • EN55022/CISPR 22 Information Technology Equipment
  • EN55024/CISPR 24 Information Technology Equipment
  • EN300 386 Telecommunications Network Equipment
  • EN50082-1/EN61000-6-1 Generic Immunity Standard
Safety:
  • UL60950-1
  • CSA C22.2 No.60950-1-03
  • EN 60950-1
  • IEC 60950-1
  • AS/NZS 60950.1

Warranty

Standard Warranty:
90 Day
