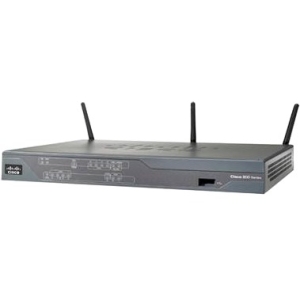

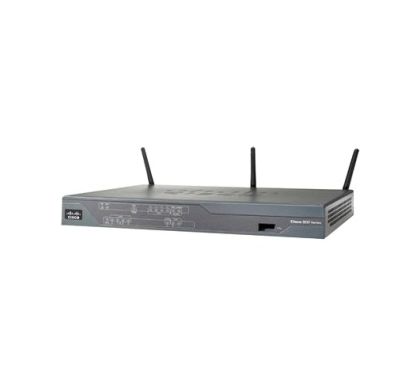

CISCO 887VAM Router

CISCO 887VAM Router
C887VAM-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Routers & Gateways

for alternative options.

Description

The Cisco® 880 Series Integrated Services Routers (ISRs) combine Internet access, security, voice, and wireless services onto a single, secure device that is simple to use and manage for small businesses and enterprise small branch offices and teleworkers. The Cisco 880 Series delivers features including firewall, content filtering, VPNs, and wireless LANs (WLANs) at broadband speeds to small offices. Easy deployment and centralized management features enable enterprises or service providers to deploy the Cisco 880 Series in small branch offices or small businesses.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
880
Product Model:
887VAM
Product Name:
887 VDSL/ADSL Annex M Over POTS Multi-mode Router
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
4
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
4

Media & Performance

Broadband Transmission Speed:
24 Mbps
Broadband Transmission Technology:
ADSL2+

Network & Communication

Network Technology:
  • 10/100Base-TX
Ethernet Technology:
  • Fast Ethernet

Management & Protocols

Security Features:
  • Firewall
  • Intrusion Prevention
  • Content Filtering
  • VPN
  • DMVPN
  • Tunnel-less Group Encrypted Transport VPN
  • IPsec Stateful Failover
  • IPsec
  • Cisco IOS Firewall
  • Firewall Stateful Failover
  • VRF-Aware Firewall
  • Integrated Threat Control
  • IPS
  • Control Plane Policing
  • Flexible Packet Matching
  • Network foundation protection

Memory

Flash Memory:
256 MB

Power Description

PoE Port:
Yes
Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
Desktop
Height:
44.5 mm
Width:
325.1 mm
Depth:
248.9 mm
Weight (Approximate):
2.49 kg

Miscellaneous

Certifications & Standards:
Emissions:
  • 47 CFR Part 15: 2006
  • CISPR22: 2005
  • EN300386: V1.3.3: 2005
  • EN55022: 2006
  • EN61000-3-2: 2000 [Inc amd 1 and 2]
  • EN61000-3-3: 1995 [+ amd 1: 2001]
  • ICES-003 Issue 4: 2004
  • KN 22: 2005
  • VCCI: V-3/2006.04
Immunity:
  • CISPR24: 1997 [+ amd 1 and 2]
  • EN300386: V1.3.3: 2005
  • EN50082-1: 1992
  • EN50082-1: 1997
  • EN55024: 1998 [+ amd 1 and 2]
  • EN61000-6-1: 2001

Warranty

Standard Warranty:
1 Year
