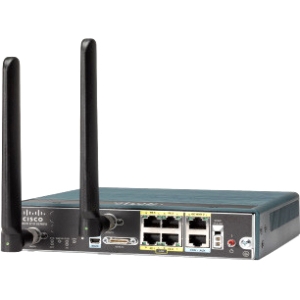

CISCO 819H Router

CISCO 819H Router
C819H-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Routers & Gateways

for alternative options.

Description

The Cisco 819 ISR is available in both non-hardened (Cisco 819G) and hardened (Cisco 819HG) versions. Both models include support for 3G up to 3.7G wireless WAN (WWAN) speeds. Support for 3G offers cost-effective, rapidly deployable, reliable, and secure primary or backup connectivity. With support for industrial-grade components, the hardened Cisco 819HG extends the footprint and provides deployment flexibility. The Cisco 819HG is an ideal solution for stationary and mobile environments where space, heat dissipation, exposure to extreme temperatures, harsher environments, and low power consumption are critical factors.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
800
Product Model:
819H
Product Name:
C819 M2M Hardened Secure Router with Smart Serial
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
5
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
Yes
Number of Network (RJ-45) Ports:
4
Number of Broadband (RJ-45) Ports:
1

Network & Communication

Network Technology:
  • 10/100Base-TX
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet

Management & Protocols

Security Features:
  • MAC Filtering
  • SSL
  • PKI
  • NAT
  • IPsec
  • SIP
  • Firewall
  • Content Filtering
  • IPS
  • Web Security
  • Web Filtering
  • RADIUS
  • TACACS+
  • Adaptive Control Technology
  • L2TP
  • VPN
  • DES
  • 3DES
  • 128/192/256-bit AES
  • ACL
  • Dynamic Port Security
  • Static Port Security

Memory

Standard Memory:
  • 1 GB
Maximum Memory:
1 GB

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
No

Physical Characteristics

Form Factor:
  • Desktop
  • Wall Mountable
Height:
43.9 mm
Width:
205.7 mm
Depth:
195.6 mm
Weight (Approximate):
1.45 kg
