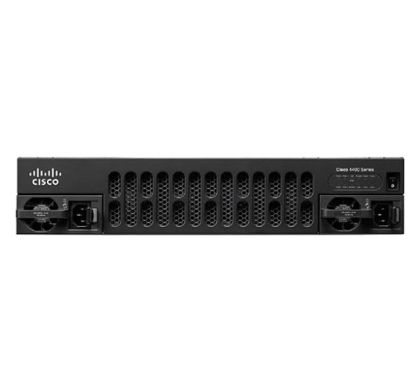

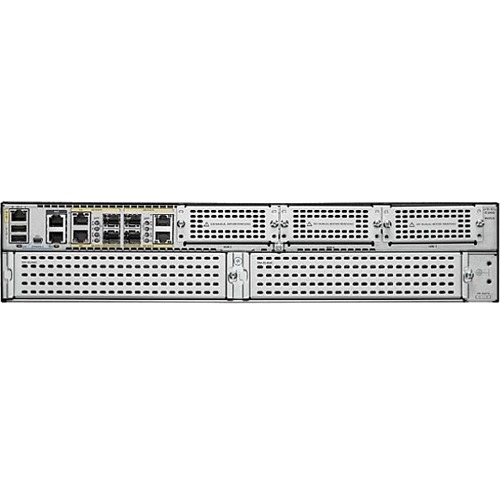

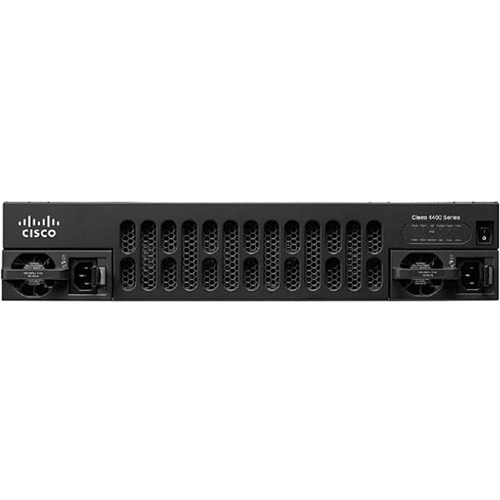

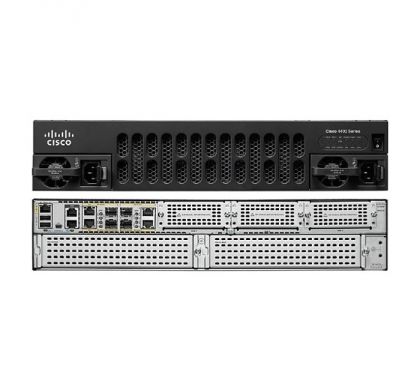

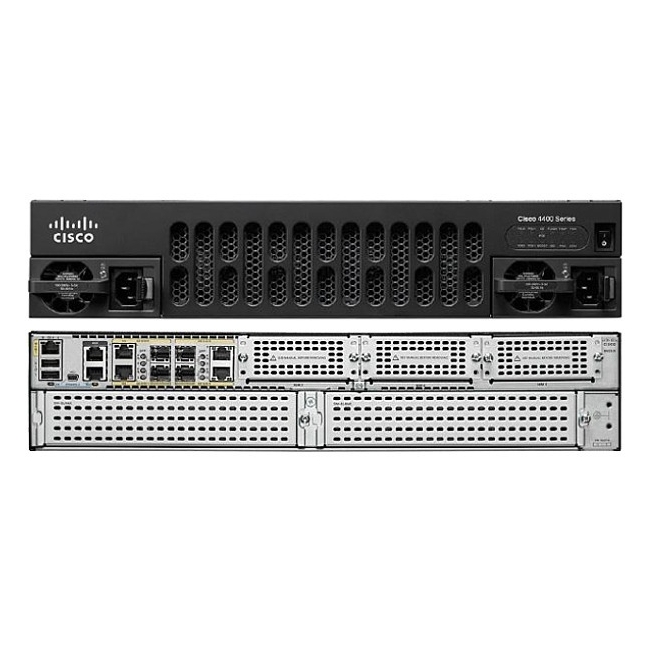

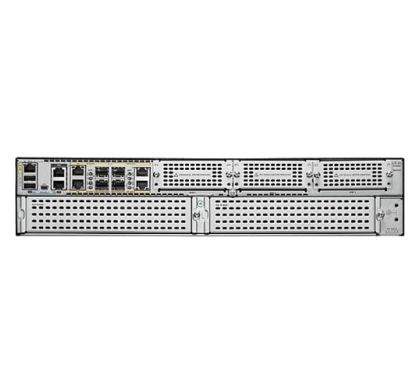

CISCO 4451-X Router - 2U

CISCO 4451-X Router - 2U
ISR4451-X-AX/K9
Please Call
Please contact us for pricing

Description

Cisco ISR-AX router bundles directly integrates Cisco Wide Area Application Services (WAAS), Security (SEC), and Data (DATA) licenses into a platform that is simple to order, configure, and deploy for secure, optimized cloud connectivity and branch-office routing. By providing a system that is simple to order and deploy, the Cisco ISR-AX platforms add to the rich breadth of services available on the ISRs. Cisco® Intelligent WAN (IWAN) is enabled by the Cisco Application Experience (AX) platform and delivers an uncompromised user experience over any connection, allowing businesses to right-size their networks with operational simplicity and lower costs, freeing up resources for additional IT initiatives/spend.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4400
Product Model:
4451-X
Product Name:
4451-X Router
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
4
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
4

I/O Expansions

Number of Total Expansion Slots:
10
Expansion Slot Type:
  • SFP
  • Network Interface Module (NIM)
  • PVDM
  • Integrated Services Card (ISC)

Network & Communication

Network Technology:
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet

Management & Protocols

Security Features:
  • IPsec
  • VPN
  • SSL
  • Advanced Application Inspection
  • Application Control
  • SSH
  • NAC
  • Voice and Video Enabled VPN
  • Group Encrypted Transport (GET)
  • Flex VPN
  • Cisco IOS XE Software-based Traffic Control
  • NBAR
  • AAA
  • PKI
  • ACL

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
16 GB
Memory Technology:
DRAM
Flash Memory:
8 GB

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC

Physical Characteristics

Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
88.9 mm
Width:
438.2 mm
Depth:
469.9 mm
Weight (Approximate):
13.06 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • EN 60950-1
  • AS/NZS 60950-1
  • IEC 60950-1
EMC:
  • 47 CFR, Part 15
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI V-3
  • CNS 13438
  • EN 300-386
  • EN 61000 (Immunity)
  • EN 55024, CISPR 24
  • EN50082-1
  • SD/EMI
  • KN22,KN24
Telecom:
  • T1
  • IC CS-03:2004
  • TIA-968-B:2009
  • HKTA 2028:2010
  • HKTA 2017:2010
  • HKTA 2015: 2006
  • G.703:2001
  • ID0002:2007
  • IS6100:2004
  • DSPR Gray Book:2000
  • DSPR Technical Condition: 2004
  • E1
  • AS/ACIF S016: 2001
  • AS/ACIF S038: 2001
  • G.703:2001
  • TBR 4:1995
  • TBR 12:1993
  • TBR 13:1996
  • RRA 2009-38
  • RRL 2005-96
  • IDA TS DLCN:2011
  • IDA TS ISDN PRA:2005
  • IS6100: 2004
  • PTC 220:2008
  • IEEE 802.3
  • ANSA X3.263

Warranty

Standard Warranty:
90 Day
