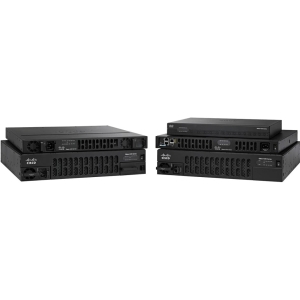

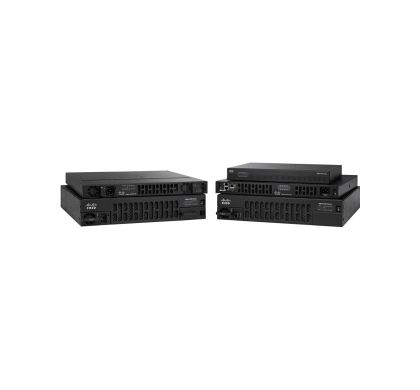

CISCO 4321 Router - 1U

ISR4321/K9
Please Call
Please contact us for pricing

Description

The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
4000
Product Model:
4321
Product Name:
4321 Router
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
2
USB:
Yes
Powerline:
No
Management Port:
Yes
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
2

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP
  • Network Interface Module (NIM)
  • Smart Interface Card (SIC)

Network & Communication

Network Technology:
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet

Management & Protocols

Security Features:
    • ACL
    • RADIUS
    • AAA
    • IPsec
    • DMVPN

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
8 GB
Memory Technology:
DDR3 SDRAM
Flash Memory:
4 GB

Power Description

Input Voltage:
  • 230 V AC
  • 120 V AC
Power Source:
  • Power Supply
  • PoE
Redundant Power Supply:
No

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Wall Mountable
  • Rack-mountable
Height:
44.6 mm
Width:
369.6 mm
Depth:
294.6 mm
Weight (Approximate):
3.50 kg

Miscellaneous

Package Contents:
  • 4321 Router
  • Rack-mount 19inch EIA
Certifications & Standards:
Safety:
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • EN 60950-1
  • AS/NZS 60950-1
  • IEC 60950-1
  • GB-4943
EMC:
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI V-3
  • CNS 13438
  • EN 300-386
  • EN 61000 (Immunity)
  • EN 55024
  • CISPR 24
  • EN50082-1
  • KN22
  • KN24
Telecom:
  • TIA-968-B
  • CS-03
  • ANSI T1.101
  • ITU-T G.823, G.824
  • IEEE 802.3
  • RTTE Directive

Warranty

Standard Warranty:
90 Day
