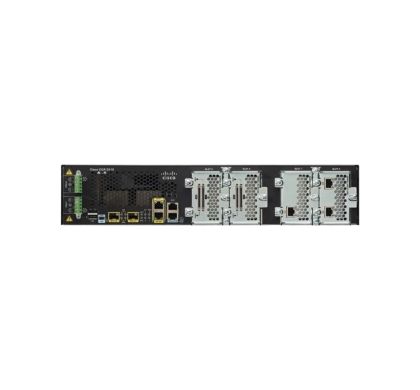

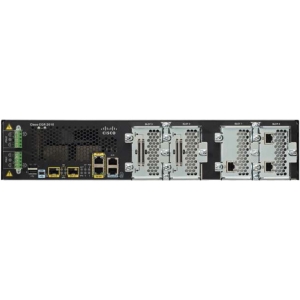

CISCO 2010 Router - 2U
Description
The Cisco CGR 2010 is a rugged router optimized for use in transmission & distribution (T&D) power substations. The Cisco CGR 2010 is designed for substation networks to meet the harsh environments common in transmission & distribution substations. In addition, The CGR 2010 provides the substation operator with the benefits of improved security, manageability and network reliability. The CGR 2010 uses Cisco IOS software which is the operating system powering millions of Cisco routers deployed worldwide. Cisco IOS software delivers the benefits of integrated security for NERC/CIP compliance, quality of service, and network management to ensure integrity and priority of operational data communications.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
2000
Product Model:
2010
Product Name:
2010 Connected Grid Router
Product Type:
Router
Interfaces/Ports
Total Number of Ports:
2
USB:
Yes
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
2
I/O Expansions
Number of Total Expansion Slots:
10
Expansion Slot Type:
- WIC
- SFP (mini-GBIC)
Network & Communication
Network Technology:
- 10/100/1000Base-T
Ethernet Technology:
- Gigabit Ethernet
Management & Protocols
Security Features:
- IPSec
- SSL
- AAA
- Encrypted Transport VPN
- Dynamic Multipoint VPN (DMVPN)
- Enhanced Easy VPN
- Cisco IOS Firewall
- Cisco IOS Zone-Based Firewall
- Cisco IOS Intrusion Prevention System (IPS)
- Cisco IOS Content Filtering
- Flexible Packet Matching (FPM)
Memory
Standard Memory:
- 1 GB
Memory Technology:
DDR2 SDRAM
Flash Memory:
256 MB
Memory Card Supported:
- CompactFlash (CF) Card
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Compatible Rack Unit:
2U
Form Factor:
- Rack-mountable
- Wall Mountable
Height:
88.9 mm
Width:
438.2 mm
Depth:
381 mm
Weight (Approximate):
8.62 kg
