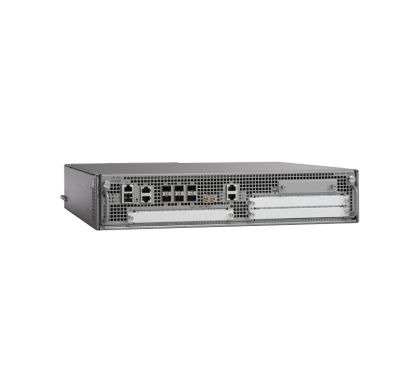

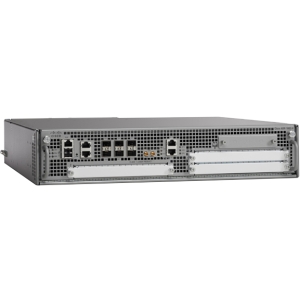

Cisco ASR1002-X Router Chassis - 2U
Description
Cisco is reinventing edge routing with the Cisco® ASR 1000 Series Aggregation Services Routers, a portfolio of midrange routers that establish a new price-to-performance class offering, benefiting both service providers and enterprises alike:
For service providers, the Cisco ASR 1000 Series Routers facilitate more flexible, efficient, and cost-effective delivery of complex consumer and business services.
For enterprises, the Cisco ASR 1000 Series Routers deliver a highly reliable, high-performance WAN edge solution where information, communication, collaboration, and commerce converge.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 1000
Product Model:
ASR1002-X
Product Name:
ASR1002-X Chassis
Product Type:
Router Chassis
Interfaces/Ports
Total Number of Ports:
6
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
I/O Expansions
Number of Total Expansion Slots:
9
Expansion Slot Type:
- SFP (mini-GBIC)
- Shared Port Adapter
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
VoIP Supported:
No
Management & Protocols
Security Features:
- Cisco IOS Flexible Packet Matching
- Zone-Based Policy Firewall
Memory
Standard Memory:
- 4 GB
Maximum Memory:
16 GB
Memory Technology:
DRAM
Power Description
PoE Port:
No
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Compatible Rack Unit:
2U
Form Factor:
- Desktop
- Rack-mountable
Height:
88.9 mm
Width:
436.9 mm
Depth:
461 mm
Weight (Approximate):
17.35 kg
