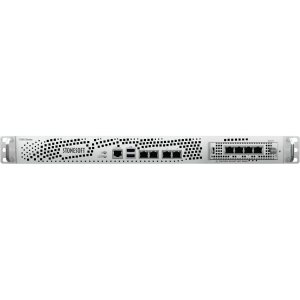

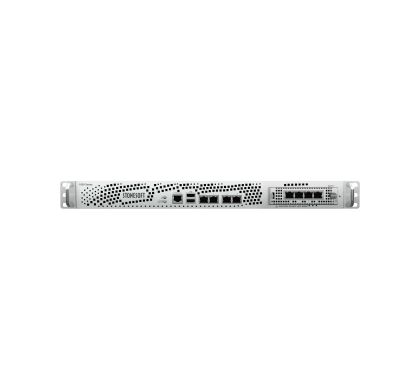

MCAFEE Stonesoft 1035-C1 Network Security/Firewall Appliance

MCAFEE Stonesoft 1035-C1 Network Security/Firewall Appliance
FWL-1035C1I

This product has been discontinued by the manufacturer

Please visit

MCAFEE Network Security & Firewalls

for alternative options.

Description

The Stonesoft 1035 appliance is a versatile and modular security engine solution designed to meet the performance requirements of branch offices and mid-sized organizations. It can be used in the Firewall/VPN role (layer 3) for secure routing, NAT, and IPsec VPN gateway purposes. It can be used in the IPS role (layer 2) in an IDS deployment or an Inline IPS deployment, or in the Layer 2 Firewall role. All of these roles are available with a single unified software image and adapt just by changing the configuration.

In the Firewall/VPN role, built-in firewall clustering, server load balancing and the possibility to utilize reserve ISP capacity on overloaded internet connections guarantees continuous network connectivity.

Specifications

General Information

Manufacturer:
McAfee, Inc
Manufacturer Website Address:
http://www.mcafee.com
Brand Name:
Stonesoft
Product Series:
1000
Product Model:
1035-C1
Product Name:
1035-C1 Network Security/Firewall Appliance
Product Type:
Network Security/Firewall Appliance

Technical Information

Virtualization:
  • 1200000 x 64 byte packets per Second (no inspection)
  • 40000 x New TCP connections/sec (no inspection)
  • 2000 x New inspected HTTP Connections (21 kB payload)
  • 6000000 x Concurrent Connections
  • 150 000 x Inspected Concurrent Connections
  • 20000 x VPN Tunnels
  • 5 x Virtual Engines (max)
  • 256 x VLAN
  • 100 x Concurrent mVPN Clients
Firewall Protection:
  • Intrusion Prevention
  • Secure IPsec VPN Connectivity
  • Application Control
Encryption Standard:
  • AES (128-bit)
  • AES (256-bit)
  • DES

Interfaces/Ports

Total Number of Ports:
4
DSL Port:
No
USB:
Yes
Modem:
No
PoE Port:
No
Management Port:
Yes
Number of Network (RJ-45) Ports:
4

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Network Standard:
10/100/1000Base-T

Wireless Specifications

Wi-Fi:
No

I/O Expansions

Number of Total Expansion Slots:
1

Management & Protocols

Manageable:
Yes

Power Description

Input Voltage:
  • 230 V AC
  • 120 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.9 mm
Width:
426 mm
Depth:
300 mm
Weight (Approximate):
4.20 kg
