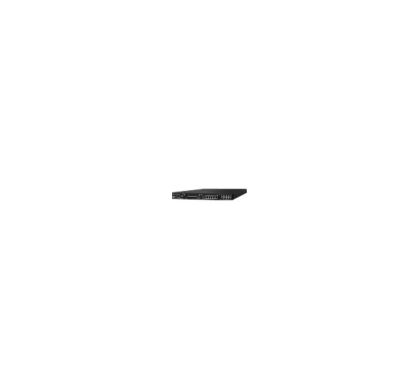

MCAFEE NS7100 Network Security/Firewall Appliance

IPS-NS7100A

This product has been discontinued by the manufacturer

Please visit

MCAFEE Network Security & Firewalls

for alternative options.

Description

A uniquely intelligent approach to network security

McAfee® Network Security Platform is a uniquely intelligent security solution that discovers and blocks sophisticated threats in the network. Using advanced threat detection techniques, it moves beyond mere pattern matching to defend against stealthy attacks with extreme accuracy. This next-generation hardware platform scales to speeds of more than 40 Gbps with a single device to meet the needs of demanding networks. The Security Connected approach to security management streamlines security operations by combining realtime McAfee Global Threat Intelligence (McAfee GTI) feeds with rich contextual data about users, devices, and applications for fast, accurate response to network-borne attacks.

Specifications

General Information

Manufacturer:
McAfee, Inc
Manufacturer Website Address:
http://www.mcafee.com
Brand Name:
McAfee
Product Series:
NS
Product Model:
NS7100
Product Name:
NS7100 Network Security/Firewall Appliance
Product Type:
Network Security/Firewall Appliance

Technical Information

Virtualization:
  • 3000000 x Maximum Concurrent Connection
  • 135000 x TCP Connections per Second
  • 115000 x HTTP Connections per Second
  • 250000 x Maximum SSL Flow Count
  • 1024 x SSL Keys Imported
  • 1000 x Number of Virtual IPS Systems
  • 5000 x Maximum DoS Profiles
  • 3000 x ACL Rules
Firewall Protection:
  • Distributed Denial of Service (DDoS)
  • AntiBot
  • Vulnerability Assessment
  • Deep Inspection Firewall
  • Zero Day Event
  • Denial of Service (DoS)
  • Intrusion Prevention
  • Malware Protection

Interfaces/Ports

Total Number of Ports:
8
Management Port:
Yes
Number of Network (RJ-45) Ports:
8

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet
Network Standard:
  • 10/100/1000Base-T
  • 10GBase-X

Wireless Specifications

Wi-Fi:
No

I/O Expansions

Number of Total Expansion Slots:
4
Expansion Slot Type:
  • SFP+
  • I/O Module
Number of SFP+ Slots:
2

Management & Protocols

Manageable:
Yes

Storage

Hard Drive Capacity:
160 GB

Power Description

Input Voltage:
  • 230 V AC
  • 120 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
42.9 mm
Width:
444.5 mm
Depth:
734.1 mm
Weight (Approximate):
13.15 kg
