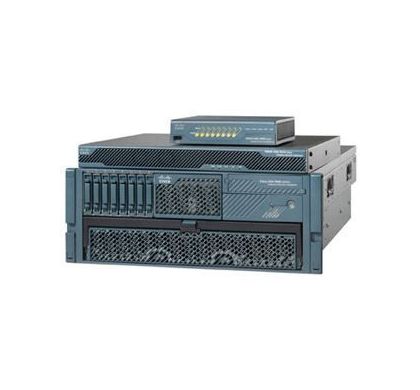

LINKSYS Cisco ASA 5510 Network Security/Firewall Appliance

ASA5510-CSC10-K8 LINKSYS Cisco ASA 5510 Network Security/Firewall Appliance
ASA5510-CSC10-K8

This product has been discontinued by the manufacturer

Please visit

LINKSYS Network Security & Firewalls

for alternative options.

Description

The Cisco ASA 5510 Anti-X Edition Adaptive Security Appliance delivers advanced security and networking services for small and medium-sized businesses and enterprise remote/branch offices in an easy-to-deploy, cost-effective appliance. These services can be easily managed and monitored by the integrated, Cisco Adaptive Security Device Manager application, thus reducing the overall deployment and operations costs associated with providing this high level of security. The Cisco ASA 5510 Adaptive Security Appliance provides high-performance firewall and VPN services and five integrated 10/100 Fast Ethernet interfaces.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
5500
Product Model:
ASA 5510
Product Name:
ASA 5510 Anti-X Edition Adaptive Security Appliance
Product Type:
Network Security/Firewall Appliance

Technical Information

Virtualization:
  • 250 x IPSec VPN Peer
  • 9000 x Connections Per Second
  • 50 x 802.1Q VLAN Support
  • 2 x SSL VPN Peer
  • 2 x Security Context
  • 50000 x Concurrent Connection
    • Firewall Protection:
    • Anti-phishing
    • Anti-spam
    • Anti-spyware
    • Antivirus
    • Intrusion Detection
    • Intrusion Prevention
    • Malware Protection
    • URL Filtering
    • Worm Scanning
    Encryption Standard:
    • 3DES
    • AES
    • DES

    Interfaces/Ports

    Total Number of Ports:
    5
    Management Port:
    Yes

    Network & Communication

    Ethernet Technology:
    • Fast Ethernet
    Network Standard:
    10/100Base-TX

    I/O Expansions

    Number of Total Expansion Slots:
    2
    Expansion Slot Type:
    • SSM
    Number of SSM Slots:
    1

    Management & Protocols

    Manageable:
    Yes

    Memory

    Standard Memory:
    • 256 MB
    Memory Technology:
    SDRAM
    Flash Memory:
    64 MB
    Memory Card Supported:
    • CompactFlash (CF) Card

    Power Description

    Input Voltage:
    • 110 V AC
    • 220 V AC
    Power Source:
    • Power Supply

    Physical Characteristics

    Form Factor:
    Rack-mountable
    Height:
    44.5 mm
    Width:
    445.0 mm
    Depth:
    362.0 mm
    Weight (Approximate):
    9.07 kg

    Miscellaneous

    Package Contents:
  • ASA 5510 Anti-X Edition Adaptive Security Appliance
  • ASA 5500 CSC Security Services Module-10 (ASA-CSC-10-INC-K9)
  • Power Cord,110V(CAB-AC)
  • ASA 180W AC Power Supply(ASA-180W-PWR-AC)
  • ASA 5500 CSC Security Services Module-10 included w/ bundles(ASA-CSC-10-INC-K9)
    • Additional Information:
  • No Cisco VPN Client Software Included (ASA-VPN-CLNT-NONE)
  • ASA 5500 Series Software v7.2 (SF-ASA-7.2-K8)
  • 30-Day Evaluation License for ASA 5500 CSC SSM-10 Plus Pack ASA 5500
  • (ASA-CSC10-PL-EVAL)
  • ASA 5500 Base Encryption Level (DES) (ASA5500-ENCR-K8)
  • ASA 5500 Series Content Security SSM-10 Software License (ASA-CSC10-LIC)

    • Warranty

    Standard Warranty:
    90 Day Limited
