STARTECH .com SFP (mini-GBIC)
Description

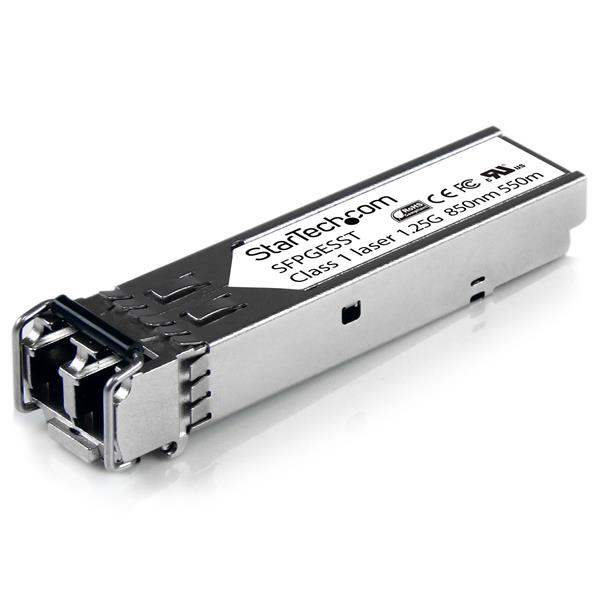

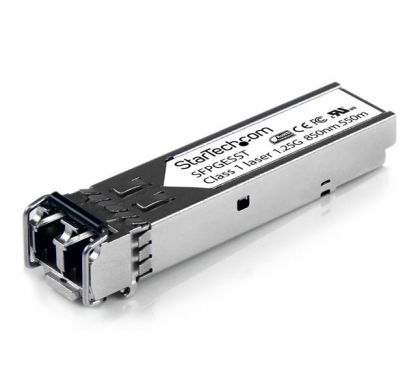

Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPGESST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (Mini-GBIC)
Product Type:
SFP (mini-GBIC)
Packaged Quantity:
1
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Interfaces/Ports Details:
- 1 x LC 1000Base-SX Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-SX
Maximum Data Transfer Rate:
1.25
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
10.2 mm
Width:
12.7 mm
Depth:
61 mm
Weight (Approximate):
17 g
Miscellaneous
Compatibility:
MSA Compliant
Green Compliant:
Yes
