LENOVO Pass-thru Module
Description

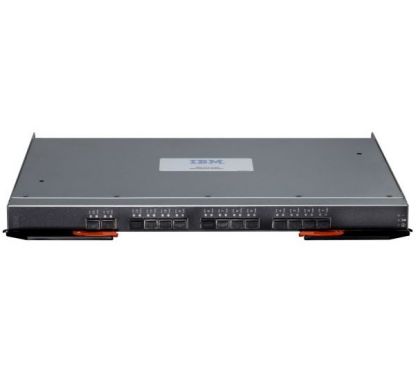

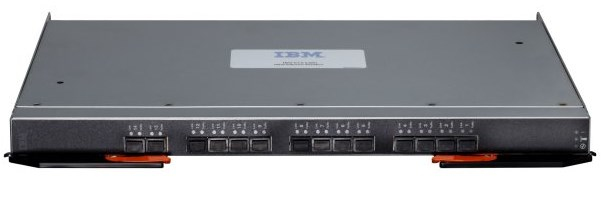

The IBM Flex System™ EN4091 10Gb Ethernet Pass-thru Module offers easy connectivity of the IBM Flex System Enterprise Chassis to any external network infrastructure. This unmanaged device enables direct connectivity of the compute node in the chassis to an external top-of-rack data center switch. This module can function at both 1 Gb and 10 Gb Ethernet speeds. It has fourteen internal 10 Gb links, and fourteen external 10 Gb SFP+ uplinks.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
Flex System EN4091 10Gb Ethernet Pass-thru Module
Product Type:
Pass-thru Module
Technical Information
Application/Usage:
- Data Networking
- Optical Network
I/O Expansions
Number of Total Expansion Slots:
14
Expansion Slot Type:
SFP+
Physical Characteristics
Height:
30.5 mm
Width:
401.3 mm
Depth:
317.5 mm
Weight (Approximate):
3.67 kg
Shipping Height:
114.30 mm
Shipping Width:
508 mm
Shipping Depth:
431.80 mm
Miscellaneous
Compatibility:
IBM Flex System Enterprise Chassis
