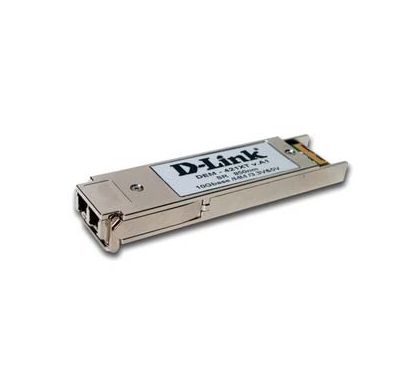

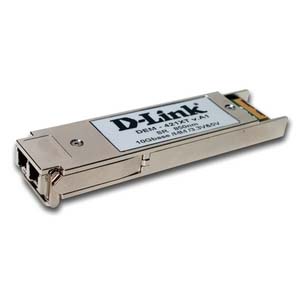

D-LINK DEM-421XT Expansion Module - 1 x 10GBase-SR

Code: DEM-421XT

Stock: Please Call

Please contact us for pricing

Description

Designed to support distances up to 300 meters, the DEM-421XT is a high performance 850nm Multi-Mode XFP transceiver. Supporting Full-duplex, 10Gigabit speeds on Multi-Mode fiber cables.The DEM-421XT provides the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The DEM-421XT is hot swappable. You can remove or replace the transceiver with the system powered on. This permits modules and transceivers to be added or swapped without interrupting network systems.

Specifications

General Information

Manufacturer:

D-Link Systems, Inc

Manufacturer Website Address:

http://www.dlink.com.au

Brand Name:

D-Link

Product Model:

DEM-421XT

Product Name:

10GBASE-SR Multi-Mode XFP Transceiver

Product Type:

Expansion Module

Technical Information

Application/Usage:

Data Networking

Interfaces/Ports

Interfaces/Ports:

1 x 10GBase-SR

Interfaces/Ports Details:

1 x LC 10GBase-SR

Media & Performance

Data Transfer Rate:

10 Gbps Gigabit Ethernet

Environmental Conditions

Humidity:

0% to 85%

Physical Characteristics

Form Factor:

Hot-swappable

Dimensions:

12.4 mm Height x 18.3 mm Width x 71.1 mm Depth

Miscellaneous

Additional Information:

Wavelength: 50nm Multimode
Supports Full-Duplex 802.3x Flow Control
15kV air discharge and 8 kV contact discharge to the faceplate

Cabling Specifications:

62.5 microns: Modal Bandwidth: 160 MHz/km, 26 meters
62.5 microns: Modal Bandwidth: 200 MHz/km, 33 meters
50.0 microns: Modal Bandwidth: 400 MHz/km, 66 meters
50.0 microns: Modal Bandwidth: 500 MHz/km, 82 meters
50.0 microns: Modal Bandwidth: 2000 MHz/km, 300 meters

Compatibility:

xStack 48-Port 10/100/1000 Switch+ 4 combo SFP + 2 10GbE ports (DXS-3350SR)
D-Link xStack 24-SFP Slot L3 MNGD Switch, 10- Gig Uplinks (DXS-3326GSR)

Certifications & Standards:

802.3x Flow control
802.3ae 10GBASE-SR Compliance
EMI: FCC Class B - EN 55022 Class B
RFI: EN 61000-4-3
FDA 21 CFR 1040.10
1040.11
IEC 825-1

Laser Eye Safety:

CDRH:
- Safety:fire resistance requirements of Telcordia* GR-63 Section 4.2
TUV:
- Bauart cert# R72041496pg0001 for EN60950: 2000 and EN60825- 1:1994+A1+A2
- CB US-TUV-R-1995

Electrical Eye Safety:

TUV:
- 04SC04015
- 0111378-30
- 04SC04015
UL:
- Class1 Laser safety:(CDRH, UL, TUV)

Warranty

Standard Warranty:

2 Year
