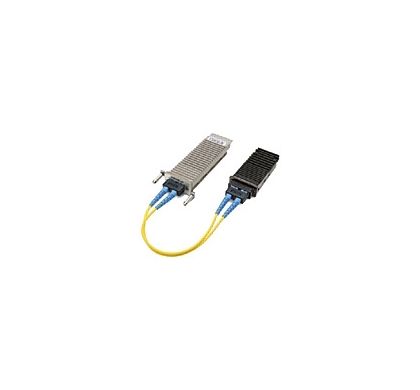

CISCO X2-10GB-LR X2 - 1 x 10GBase-LR
Description
The Cisco 10GBASE X2 module offers customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Hot-swappable input/output device plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
X2-10GB-LR
Product Name:
10GBASE-LR X2 Module
Product Type:
X2
Technical Information
Application/Usage:
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 10GBase-LR
Interfaces/Ports Details:
- 1 x SC Duplex 10GBase-LR
Media & Performance
Connectivity Media:
- G.652 µm Single-mode Optical Fiber
Data Transfer Rate:
- 10 Gbps Gigabit Ethernet
Physical Characteristics
Form Factor:
Hot-swappable
Dimensions:
13.5 mm Height x 36 mm Width x 91 mm Depth
Miscellaneous
Additional Information:
- 1310-nm wavelength
- Supports a link length of 10 kilometers
- Supports the Cisco quality identification (ID) feature that enables a Cisco switch or router to identify whether the module is a Cisco certified and tested X2
- Optical interoperability with respective 10GBASE Xenpak modules on the same link
Compatibility:
Catalyst 4500 Series
Warranty
Standard Warranty:
90
