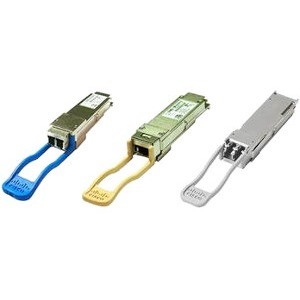

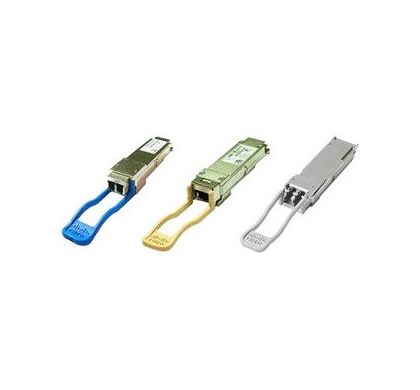

CISCO WSP-Q40GLR4L QSFP
Description
The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
WSP-Q40GLR4L
Product Name:
40GBase-LR4L QSFP Module for SMF
Product Type:
QSFP
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Interfaces/Ports Details:
- 1 x LC Duplex 40GBase-LR4 Network
Media & Performance
Fiber Mode Supported:
Single-mode
Maximum Data Transfer Rate:
40
Physical Characteristics
Form Factor:
Hot-swappable
Height:
13.5 mm
Width:
18.4 mm
Depth:
72.4 mm
Miscellaneous
Compatibility:
MSA Compliant
