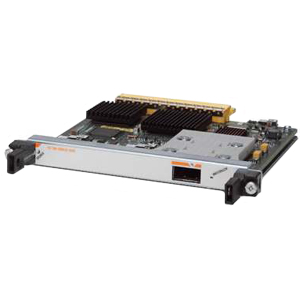

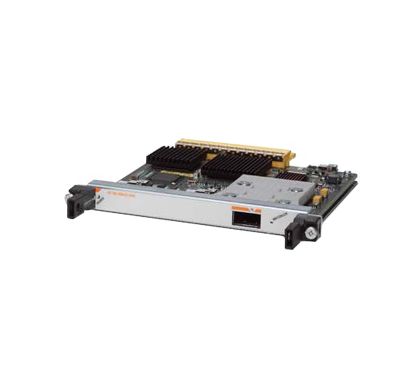

CISCO SPA-1X10GE-L-V2 Shared Port Adapter
Description
The Cisco 1-Port 10-GE SPA is available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the company's focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows deployment of different interfaces (packet over SONET/SDH [POS], ATM, Ethernet, etc.) on the same interface processor.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
SPA-1X10GE-L-V2
Product Name:
1-Port 10 Gigabit Ethernet Shared Port Adapter
Product Type:
Shared Port Adapter
Technical Information
Application/Usage:
- Data Networking
Media & Performance
Connectivity Media:
- Single-mode Optical Fiber
Data Transfer Rate:
- 10 Gbps Gigabit Ethernet Full-duplex
I/O Expansions
Expansion Slots:
- 1 x XFP Free
Management & Protocols
Management:
- Host-system CLI
- Simple Network Management Protocol (SNMP)
- Inventory- and asset management-related MIBs
- Fault management MIBs
- Physical interface management MIBs
- Remote Monitoring (RMON)-MIB
- Cisco-class-based-QoS-MIB
- MPLS-related MIBs
- Ethernet MIB/RMON
Physical Characteristics
Dimensions:
20.3 mm Height x 171.5 mm Width x 184.9 mm Depth
Weight (Approximate):
340.2 g
Miscellaneous
Additional Information:
- Jumbo frames support (9188 bytes)
- 802.3x flow control
- Bridge protocol data unit (BPDU), Cisco Discovery Protocoland VLAN Trunking Protocol (VTP) filtering
- Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling
- Layer 2 access list (MAC address-based filtering)
- Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q
- Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress)
- Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port
- Per-port byte and packet counters for policy drops; oversubscription drops; cyclic-redundancy-check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
- Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets
- Per-port byte counters for good bytes and dropped bytes
Compatibility:
- Cisco 7600 Series Router
- Cisco 12000 Series Router
- Cisco XR 12000 Series Router
- Cisco CRS-1 Carrier Routing System
