CISCO QSFP - 1 MPO/MTP 40GBase-LR Network
Description

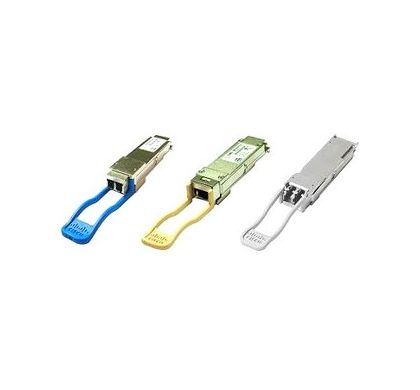

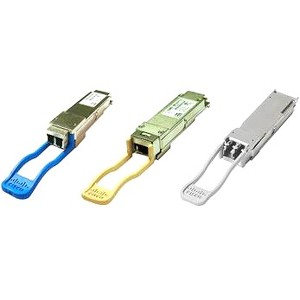

The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 single-mode fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.
The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco's QSFP-4X10G-LR-S is optimized to guarantee interoperability over the full specification range of 10GBASE-LR in 4x10G mode. QSFP-4X10G-LR-S does not support FCoE.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Name:
4x10GBASE-LR QSFP Modules for SMF
Product Type:
QSFP
Technical Information
Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
Interfaces/Ports Details:
- 1 x MPO/MTP 40GBase-LR Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Single-mode
Ethernet Technology:
40 Gigabit Ethernet
Network Technology:
40GBase-LR
Physical Characteristics
Form Factor:
Hot-swappable
Height:
13.5 mm
Width:
18.4 mm
Depth:
72.4 mm
Weight (Approximate):
100 g
Miscellaneous
Compatibility:
Cisco Router Series:
- Nexus 3000 Series
- Nexus 9000 Series
- NCS 1002 Router
