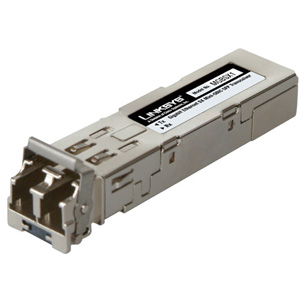

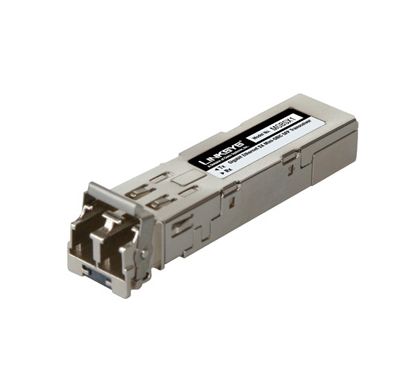

CISCO MGBSX1 SFP (mini-GBIC) - 1 x 1000Base-SX

CISCO MGBSX1 SFP (mini-GBIC) - 1 x 1000Base-SX
MGBSX1
Available
Please contact us for pricing

Description

This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
MGBSX1
Product Name:
MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Product Type:
SFP (mini-GBIC)

Technical Information

Application/Usage:
  • Data Networking

Interfaces/Ports

Interfaces/Ports:
  • 1 x 1000Base-SX
Interfaces/Ports Details:
  • 1 x LC 1000Base-SX

Media & Performance

Connectivity Media:
  • 62.5/125 µm Multi-mode Optical Fiber
  • 50/125 µm Multi-mode Optical Fiber
Distance Supported:
  • 220 m 62.5/125 µm Optical Fiber
  • 275 m 62.5/125 µm Optical Fiber
  • 500 m 50/125 µm Optical Fiber
  • 550 m 50/125 µm Optical Fiber
Data Transfer Rate:
  • 1 Gbps Gigabit Ethernet

Environmental Conditions

Temperature:
  • 0°C to 40°C Operating
  • -20°C to 70°C Storage
Humidity:
  • 0% to 85% Non-condensing Operating
  • 5% to 95% Non-condensing Storage

Physical Characteristics

Weight (Approximate):
20 g

Miscellaneous

Additional Information:
  • Transmitter Spec: Power: -9.5 to -4 dBm
  • Reciever Spec: Sensitivity: -20 to -17dBm
  • Input Power: -20 to -17 dBm
  • Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
  • Wavelength: 850 nm (850nm TYP., 830-860nm) MMF
Modular Bandwidth for MMF:
  • 62.5/125um MMF at 160 MHz/km, up to 220m
  • 62.5/125um MMF at 200 MHz/km, up to 275m
  • 50/125um MMF at 400 MHz/km, up to 500m
  • 50/125um MMF at 500 MHz/km, up to 550m
Compatibility:
  • SR2024 - 24-Port 10/100/1000 Gigabit Switch
  • SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
  • SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
  • SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
  • SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
