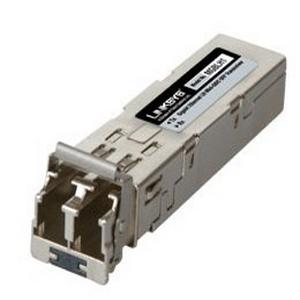

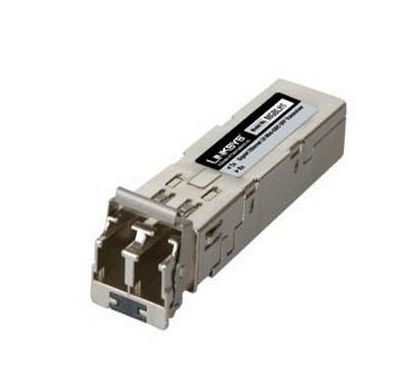

CISCO MGBLH1 SFP (mini-GBIC) - 1 x 1000Base-LH
Description
This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches. The LH module uses 1310 nanometer wavelength light in multimode or single-mode fiber optic cables, and can achieve distances up to 500 meters or 40 kilometers, depending on the fiber used.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
MGBLH1
Product Name:
MGBLH1 Mini-GBIC Transceiver Module
Product Type:
SFP (mini-GBIC)
Technical Information
Application/Usage:
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 1000Base-LH
Interfaces/Ports Details:
- 1 x LC 1000Base-LH
Media & Performance
Connectivity Media:
- 62.5/125 µm Multi-mode Optical Fiber 1000Base-LH
- 50/125 µm Multi-mode Optical Fiber 1000Base-LH
- 9/125 µm Single-mode Optical Fiber 1000Base-LH
Data Transfer Rate:
- 1.06 Gbps Gigabit Ethernet
Physical Characteristics
Form Factor:
Hot-swappable
Dimensions:
8 mm Height x 13 mm Width x 56 mm Depth
Weight (Approximate):
24 g
Miscellaneous
Additional Information:
- Optical Wave Length: 1310 nm
Compatibility:
- Linksys SRW2016 Gigabit Switch with Web-View
- Linksys SRW2024 Gigabit Switch with Web-View
- Linksys SR224G Gigabit Switch
- Linksys SRW224 Gigabit Switch with Web-View
