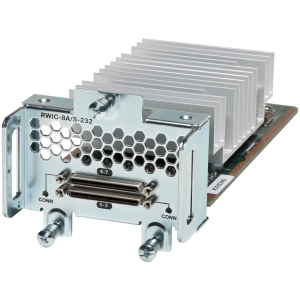

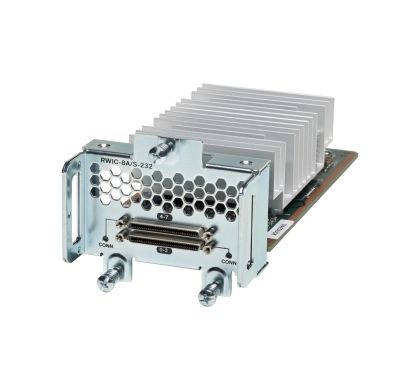

CISCO GRWIC-8A/S-232 WAN Module
Description
The 8-Port Asynchronous/Synchronous Grid Router WAN Interface Card (GRWIC) provides low speed synchronous/asynchronous serial connections supporting EIA-RS232 for the Cisco CGR 2010. The 8-port serial RS-232 GRWIC helps customers to enable applications such as legacy protocol transport, console server, and dial access server. Combining a high density serial GRWIC with the Cisco CGR 2010 enables utilities to transport Supervisory Control and Data Acquisition (SCADA) over an IP network.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
GRWIC-8A/S-232
Product Name:
8-Port WAN Interface Card
Product Type:
WAN Module
Technical Information
Application/Usage:
- Wide Area Network
Interfaces/Ports
Interfaces/Ports Details:
- 8 x DB-25 Asynchronous/Synchronous Serial Network RS-232 WAN
Media & Performance
Network Technology:
Serial
Maximum Data Transfer Rate:
256 kbit/s
Physical Characteristics
Height:
64 mm
Width:
76.2 mm
Depth:
198.4 mm
Weight (Approximate):
381 g
Miscellaneous
Compatibility:
- Cisco 2010 Connected Grid Router (CGR 2010)
- Cisco 2520 Connected Grid Switch (CGS 2520)
