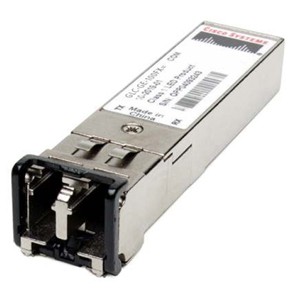

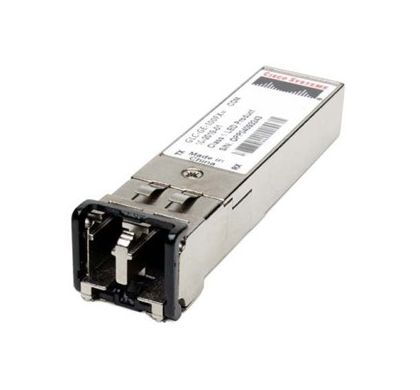

CISCO GLC-GE-100FX= SFP - 1 x 100Base-FX
Description
The Cisco 100BASE-FX Small Form-Factor Pluggable (SFP) Fast Ethernet Interface Converter is a hot-swappable device that plugs into a Gigabit Ethernet SFP port on Cisco Catalyst 3750 Series, 3560 Series, and 2970 Series switches. The Cisco SFP provides full-duplex 100-Mbps connectivity between switches over multimode fiber (MMF) infrastructures. It offers investment protection and an easy migration path for customers moving to Gigabit Ethernet connections in the future.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
GLC-GE-100FX=
Product Name:
100BASE-FX SFP Fast Ethernet Interface Converter
Product Type:
SFP
Technical Information
Application/Usage:
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 100Base-FX
Interfaces/Ports Details:
- 1 x LC Duplex 100Base-FX
Media & Performance
Distance Supported:
- 1.98 m
Data Transfer Rate:
- 100 Mbps Fast Ethernet Full-duplex
Power Description
Input Voltage:
- 3.32 Vto
- Typical
Power Consumption:
- 1.50 W
Physical Characteristics
Form Factor:
Hot-swappable
Dimensions:
9.9 mm Height x 56.6 mm Width x 13.7 mm Depth
Miscellaneous
Additional Information:
- Surge Current: 350 Typical
- Wavelength (nm): 1270 min, 1300 typical, 1380 max
- 50/125-micron: -23.5 min, -14max
- 62.5/125-micron: -20 min, -14max
- 50/125-micron: -33.35 min, -11.8max
- 62.5/125-micron: -33.35 min, -11.8max
System Requirements:
- Cisco IOS Software Release 12.2(20)SE1
Compatibility:
- Cisco Catalyst 3750, 3560, and 2970 series switches
Certifications & Standards:
- Regulatory and Standards Compliance: IEC 60825-1
Warranty
Standard Warranty:
90
