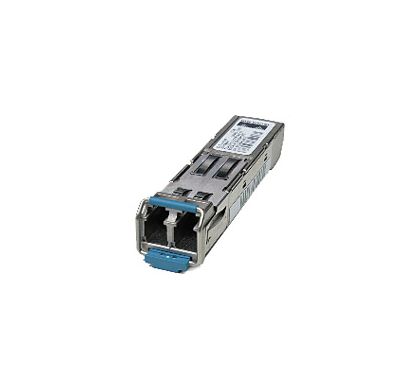

CISCO GLC-BX-D SFP (mini-GBIC) - 1 x 1000Base-BX
Description
The GLC-BX-D 1000Base-BX10 SFP Module is compatible with the IEEE 802.3ah 1000BASE-BX10-D standard, operate on a single strand of standard single-mode fiber.
The GLC-BX-D SFP also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8724 Multi Source Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
GLC-BX-D
Product Name:
GLC-BX-D 1000Base-BX10 SFP Module
Product Type:
SFP (mini-GBIC)
Technical Information
Application/Usage:
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 1000Base-BX
Interfaces/Ports Details:
- 1 x LC 1000Base-BX
Media & Performance
Connectivity Media:
- Single-mode Optical Fiber
Distance Supported:
- 10 km Single-mode Optical Fiber
Data Transfer Rate:
- 1 Gbps Gigabit Ethernet
Power Description
Input Voltage:
- 3.10 V Minimum
- 3.30 V Typical
- 3.50 V Maximum
Input Current:
- 200 mA Typical
- 300 mA Maximum
Environmental Conditions
Temperature:
- 0°C to 70°C
- -40°C to 85°C Storage
Physical Characteristics
Dimensions:
8.5 mm Height x 13.4 mm Width x 56.5 mm Depth
Miscellaneous
Additional Information:
- Spare Product
- Surge Current: 30mA
- 1490-nm TX/1310-nm RX wavelength
- The 1000BASE-BX-D SFP is compatible with the IEEE 802.3ah 1000BASE-BX10-D standard
- A 1000Base-BX10-D device is always connected to a 1000Base-BX10-D device with a single strand of standard single-mode fiber.
- Transmit Power (dBm): -3 to -9
- Receive Power Range (dBm): -3 to -19.5
- Extended temperature range (EXT): 5°C to 85°C (23 to 185°F)
Compatibility:
Compatible Platform (Switches or Modules):
- Catalyst 2960 series:
- WS-C2960-24TC-L
- WS-C2960-48TC-L
- WS-C2960G-24TC-L
- Cisco ME 3400:
- ME-3400-24TS-A
- ME-3400-24TS-D
- Catalyst 3560 series:
- WS-C3560-24PS
- WS-C3560-48PS
- WS-C3560G-24TS
- WS-C3560G-48TS
- WS-C3560G-48PS
- WS-C3560G-24PS
- WS-C3560-48TS
- WS-C3560-24TS
- Catalyst 3750 series:
- WS-C3750-24TS
- WS-C3750-48TS
- WS-C3750-24PS
- WS-C3750-48PS
- WS-C3750G-12S
- WS-C3750G-24TS
- WS-C3750G-48TS
- WS-C3750G-24PS
- WS-C3750G-48PS
- WS-C3750G-12S
- Catalyst 4500 series:
- WS-X4013+TS
- WS-X4013+10GE
- WS-4448-GB-SFP
- WS-X4506-GB-T
- WS-X4516-10GE
- Catalyst 4900 series:
- WS-C4948
- Catalyst 6500 series:
- WS-SUP720
- WS-SUP32-8GE-3B
- WS-SUP32-10GE-3B
- WS-X6724-SFP
- WS-X6748-SFP
Certifications & Standards:
- ITU-T G.652
- IEEE 802.3z
- IEEE 802.3ah
- Laser Class I 21CFR1040 LN#50 7/2001
- Laser Class I IEC 60825-1
Warranty
Standard Warranty:
90
