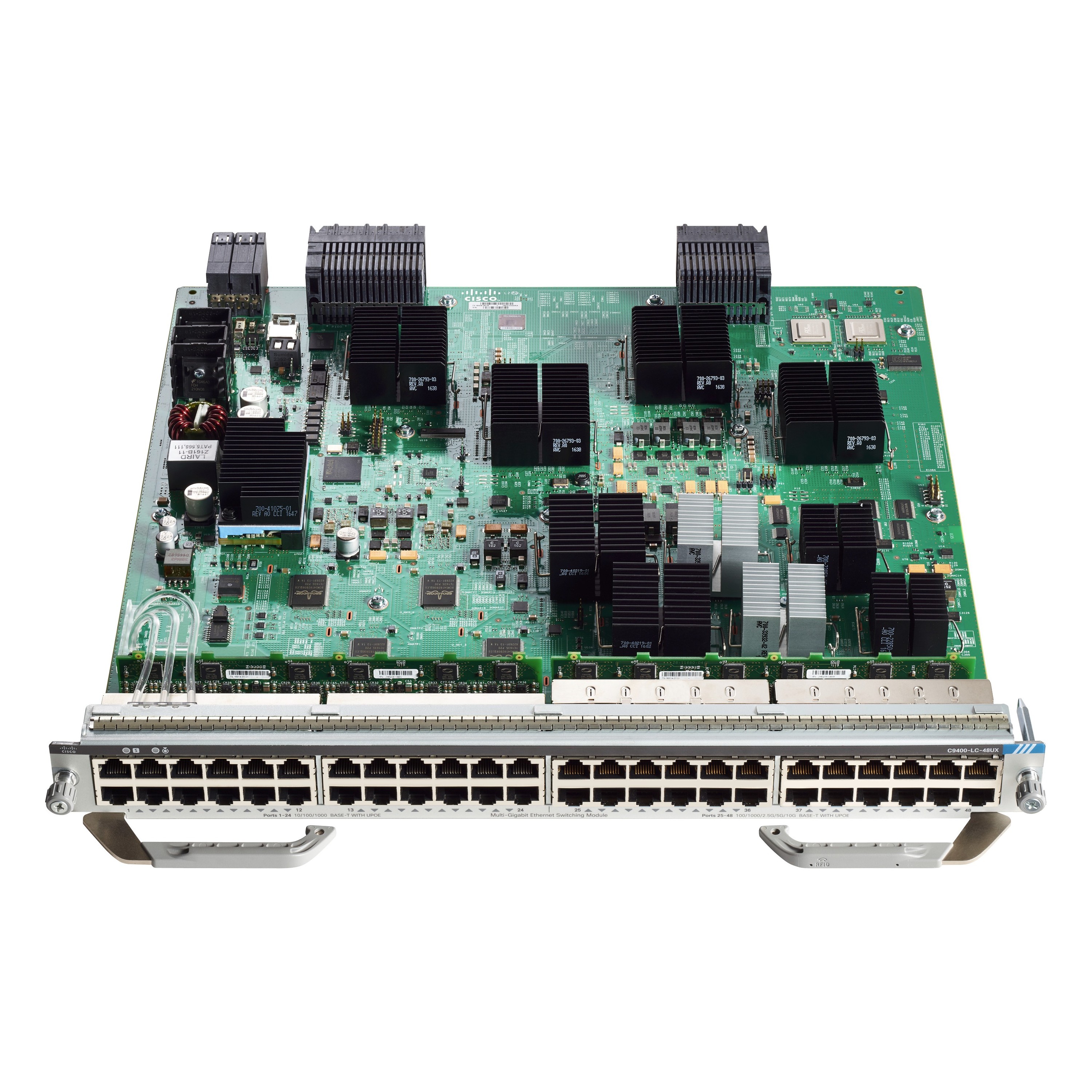

CISCO C9400-LC-48UX Expansion Module - 24 RJ-45 10GBase-T UPoE LAN, 24 RJ-45 10/100/1000Base-T UPoE LAN

C9400-LC-48UX=
Please Call
Please contact us for pricing

Description

Cisco Catalyst 9400 Series Multigigabit line card

The Cisco Catalyst 9400 Series 48-Port UPOE Line Card with 24 port Multigigabit ports and 24 10/100/1000 Mbps Ports provides the solution you need to support newer applications such as 802.11ac Wave 2 access points with your existing Ethernet access cabling. Multigigabit switch ports allow automatic negotiation of 100-Mbps, 1-Gbps, 2.5-Gbps, and 5-Gbps speeds on existing Category 5e and 6 cable, and all the way up to 10-Gbps speeds over Category 6 cabling. The Multigigabit Ethernet line card supports Power over Ethernet (PoE), PoE Plus (PoE+), and Cisco Universal PoE (Cisco UPOE) to deliver 15W, 30W, or 60W to the access point. Cisco remains the only vendor that can provide 60W to power downstream devices in a next-generation workspace. So you can power more devices-IP phones, IPTVs, surveillance cameras, virtual desktop clients, and many others-without having to install extra wall or ceiling circuits, while taking advantage of advanced power management capabilities such as Cisco EnergyWise®. You can now realize all of these Cisco UPOE benefits in a single switching platform, while enabling Multigigabit Wi-Fi speeds.

Features

  • 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports
  • Speeds of 100/1000 Mbps, 2.5/5 Gbps, and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports
  • Nonblocking up to 1000 Mbps on all ports
  • RJ-45 interface on all ports
  • Supported on Cisco IOS® XE Software Release 16.6.2 or later
  • Cisco UPOE: Capable of up to 60W on all ports in the line card
  • Energy Efficient Ethernet 802.3az on all 10/100/1000 ports
  • IEEE 802.3bz Multigigabit Ethernet standard on the Multigigabit ports
  • IEEE 802.3af/at and Cisco prestandard PoE
  • IEEE 802.1AE and Cisco TrustSec® capability in hardware (software roadmap)
  • Hardware ready for IEEE1588/802.1AS, Precision Time Protocol (PTP) used for time synchronization across the network for applications such as video and audio (software roadmap)
  • L2-4 Jumbo Frame support (up to 9198 bytes)
  • Enterprise and commercial: Designed to power next-generation IP phones, wireless access points, wireless base stations, video cameras, virtual desktop clients, and other PoE/Cisco UPOE devices
  • Support for campus and branch applications requiring enhanced performance for large file transfers and network backups

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
C9400-LC-48UX
Product Name:
Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45
Product Type:
Expansion Module

Technical Information

Application/Usage:
  • Data Networking

Interfaces/Ports

Interfaces/Ports Details:
  • 24 x RJ-45 10GBase-T UPoE LAN
  • 24 x RJ-45 10/100/1000Base-T UPoE LAN

Media & Performance

Media Type Supported:
Twisted Pair
Twisted Pair Cable Standard:
Ethernet Technology:
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10GBase-T
  • 10/100/1000Base-T

Physical Characteristics

Form Factor:
Plug-in Module
Height:
40.6 mm
Width:
379 mm
Depth:
370.1 mm

Miscellaneous

Compatibility:
Cisco Catalyst 9400 Series Supervisor Engines:
  • C9400-SUP-1
  • C9400-SUP-1XL
