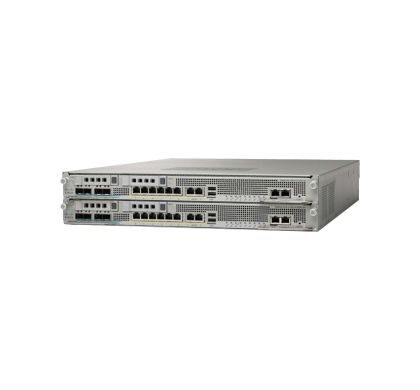

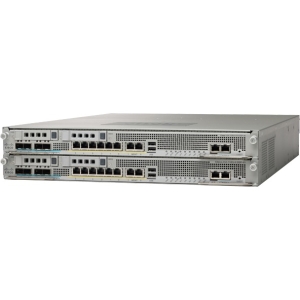

CISCO ASA ASA 5555-X Network Security/Firewall Appliance
This product has been discontinued by the manufacturer
Please visit
CISCO Network Security & Firewallsfor alternative options.
Description
Cisco® ASA 5500 and ASA 5500-X Series Next-Generation Firewalls integrate the world's most proven stateful inspection firewall with a comprehensive suite of highly integrated next-generation firewall services for networks of all sizes-small and midsize businesses with one or a few locations, large enterprises, service providers, and mission-critical data centers. The Cisco ASA 5500 and ASA 5500-X Series Next-Generation Firewalls deliver MultiScale™ performance with unprecedented services flexibility, including next-generation firewall capabilities, modular scalability, feature extensibility, and lower deployment and operations costs.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
ASA
Product Series:
5500
Product Model:
ASA 5555-X
Product Name:
ASA 5555-X with FirePOWER Services
Product Type:
Network Security/Firewall Appliance
Technical Information
Virtualization:
- 3000 x Cisco Cloud Web Security Users
- 5000 x IPsec VPN Peers
- 1000000 x Concurrent Connections
- 50000 x New Connections/Second
- 500 x Virtual Interfaces (VLANs)
- 100 x Security Contexts
Firewall Protection:
- Intrusion Prevention
- Stateful Packet Filtering
- Remote Access Authentication
- Deep Inspection Firewall
Encryption Standard:
- AES
- 3DES
Interfaces/Ports
Total Number of Ports:
8
DSL Port:
No
USB:
Yes
Serial Port:
Yes
Modem:
No
PoE Port:
No
Management Port:
Yes
Number of Network (RJ-45) Ports:
8
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
Network Standard:
10/100/1000Base-T
Wireless Specifications
Wi-Fi:
No
I/O Expansions
Number of Total Expansion Slots:
1
Management & Protocols
Manageable:
Yes
Memory
Standard Memory:
- 16 GB
Flash Memory:
8 GB
Power Description
Input Voltage:
- 230 V AC
- 120 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
42.4 mm
Width:
424.2 mm
Depth:
485.1 mm
Miscellaneous
Package Contents:
- ASA 5555-X with FirePOWER Services
- 2 x Solid State Drive
Certifications & Standards:
Safety:
- IEC 60950-1: 2005, 2ndEdition
- EN 60950-1:2006+A11: 2009
- UL 60950-1:2007, 2ndEdition
- CSA C22.2 No. 60950-1-07, 2nd Edition
- EN55022 2006+A1: 2007 Class A
- EN55024 1998+A1:2001+A2:2003
- EN61000-3-2 2009
- EN61000-3-3 2008
- FCC:CFR 47, Part 15 Subpart B Class A 2010,ANSI C63.4 2009
- ICES-003 ISSUE 4 FEBRUARY.2004
- VCCI:V-3/2011.04
- C-TICK:AS/NZS CISPR 22,2009
- KC:KN22 & KN24
Warranty
Standard Warranty:
90 Day
