LENOVO Gigabit Ethernet Card for Server

00AG520
Please Call
Please contact us for pricing

Description

The Intel I350 GbE Network Adapter Family for IBM® System x® features a robust, standards-based portfolio that delivers economical Ethernet features in an industry-standard PCIe form factor, and an IBM ML2 form factor. The IBM ML2 Network Adapter is placed into a ML2 slot on equipped IBM System x servers, enabling you to preserve your PCIe slots for other purposes. The IBM ML2 Adapter also enables the IBM System x server's management traffic to be combined with the application traffic. By merging this traffic onto a single port, your cabling and switching costs are greatly reduced.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Series:
I350
Product Name:

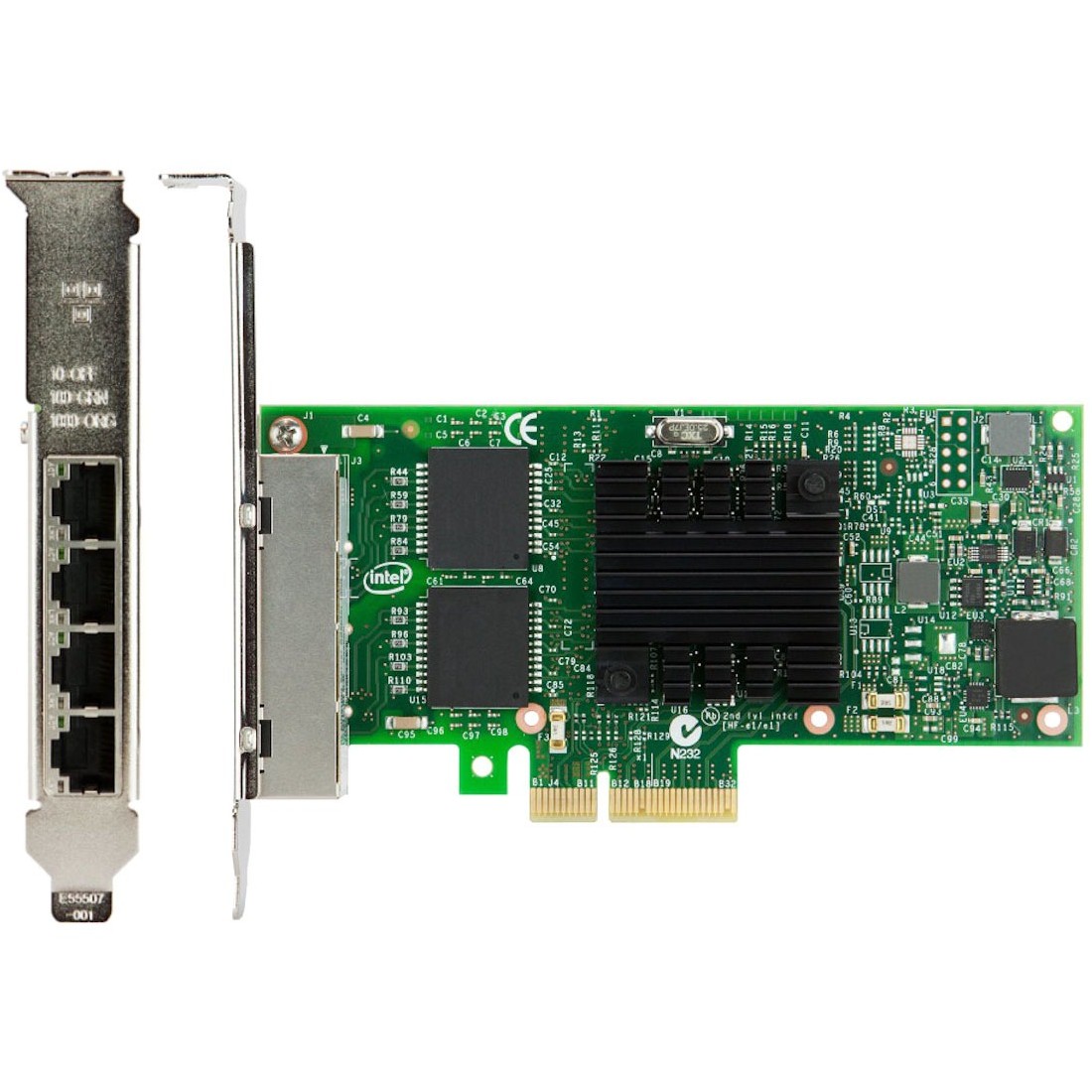

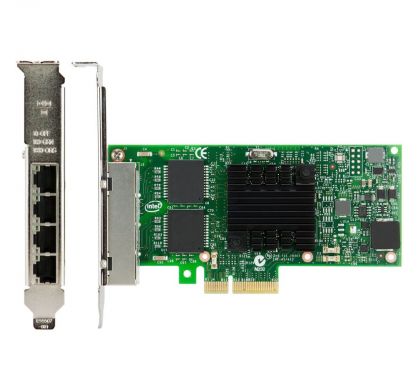

Intel I350-T4 4xGbE BaseT Adapter for IBM System x
Packaged Quantity:
1
Product Type:
Gigabit Ethernet Card

Interfaces/Ports

Host Interface:
  • PCI Express 2.0
Total Number of Ports:
4
Network (RJ-45):
Yes
USB:
No
Serial Port:
No
Ethernet AUI:
No
XJACK:
No
PoE Port:
No
Number of Network (RJ-45) Ports:
4

Media & Performance

Media Type Supported:
  • Twisted Pair
Twisted Pair Cable Standard:

Network & Communication

Network Technology:
  • 10/100/1000Base-T
InfiniBand:
No

Physical Characteristics

Card Height:
  • Low-profile
Form Factor:
Plug-in Card
Height:
69 mm
Width:
17 mm
Depth:
135 mm

Miscellaneous

Package Contents:
  • Intel I350-T4 4xGbE BaseT Adapter for IBM System x
  • 3U Bracket
  • 1 x Deiver CD
  • 1 x 2U Bracket
  • 1 x Publications CD
  • 1 x Safety Flyer
Device Supported:
  • Server
Certifications & Standards:
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.1AS
  • 802.3x
  • 802.3z
  • 802.1q
  • 802.1p
  • 802.3az
Platform Supported:
  • PC
  • Mac

Warranty

Standard Warranty:
1 Year
