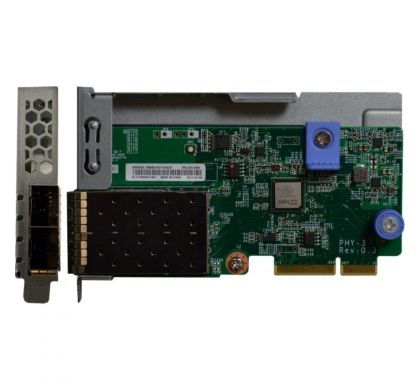

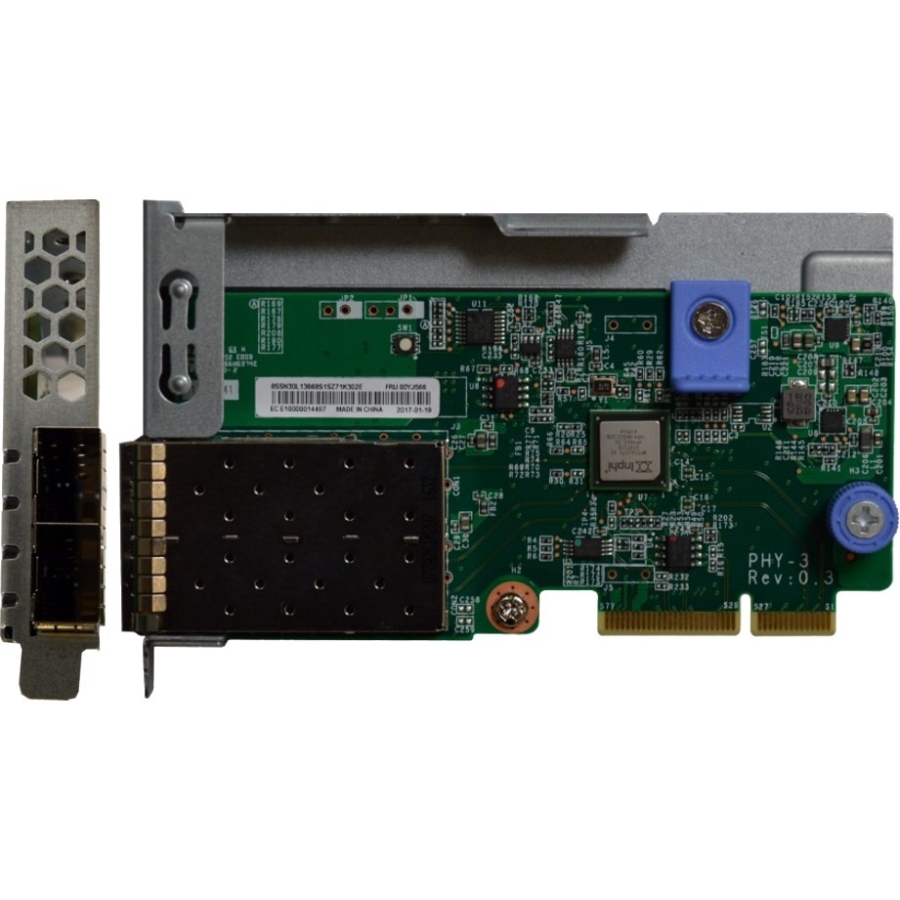

LENOVO 10Gigabit Ethernet Card for Server

7ZT7A00546
Please Call
Please contact us for pricing

Description

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.

ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.

Did you know?

The Intel Ethernet Connection X722 shares the same core and drivers as the Intel X710 adapters making driver management easier of existing customers.

ThinkSystem LOM adapters are cost-effective adapters that take advantage of the X722 controller embedded in Intel Xeon Processor Scalable Family chipset and offer the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the XClarity Controller management processor for NC-SI-compliant systems management.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
ThinkSystem 10Gb 2-port SFP+ LOM
Product Type:
10Gigabit Ethernet Card

Interfaces/Ports

Host Interface:
  • PCI Express
Total Number of Ports:
2

I/O Expansions

Expansion Slot Type:
  • SFP+

Media & Performance

Media Type Supported:
  • Optical Fiber

Network & Communication

Network Technology:
  • 10GBase-X

Physical Characteristics

Form Factor:
Plug-in Card

Miscellaneous

Device Supported:
  • Server
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • China RoHS
Country of Origin:
  • China

Warranty

Standard Warranty:
1 Year
