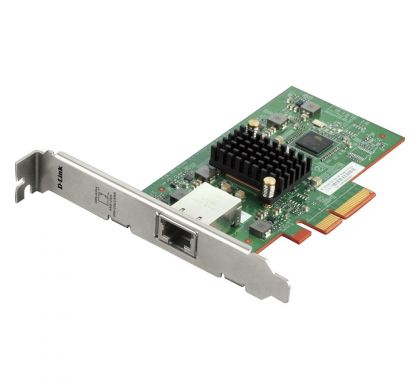

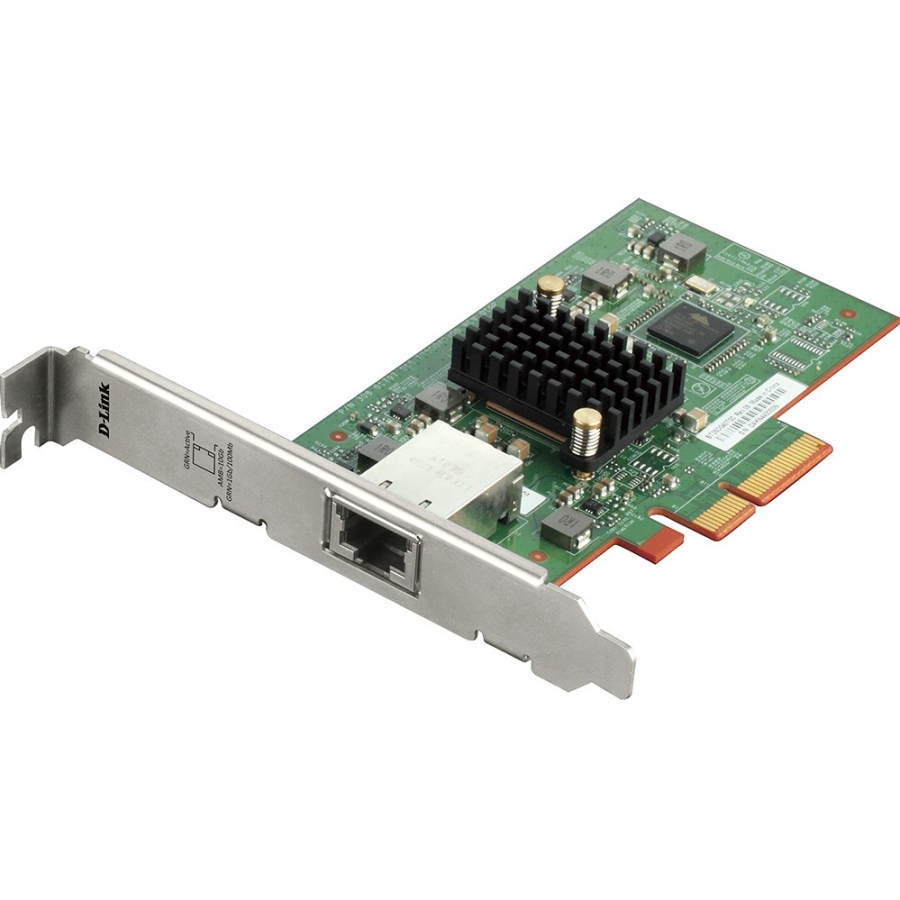

D-LINK DXE-810T 10Gigabit Ethernet Card for Server

DXE-810T
Please Call
Please contact us for pricing

Description

The D-Link DXE-810S/DXE-810T PCI Express 10 Gigabit Ethernet Adapter is a high performance adapter designed for the high-speed PCI Express bus architecture. The PCI Express 10 Gigabit Ethernet Adapter offers increased bandwidth, reliability, and more functionality than standard PCI network cards. It is specifically designed to allow throughput at rates up to 20 Gbps, eliminating the bottleneck that exists with current 32 and 64-bit PCI bus architectures.

Advanced Features and Security

The card features onboard screening of 802.1Q VLAN tagged Ethernet frames, allowing you to assign multiple subnets to each server and isolate devices within each VLAN from the rest of the network for better traffic control and security. With support for advanced features such as 802.3x Flow Control, Jumbo Frames, and SNMP for network management, the DXE-810S/DXE-810T can easily interoperate with your current networking equipment.

Checksum Offloading

The DXE-810S/DXE-810T features TCP, UDP, and IP checksum off-loading functionality, which transfers the checksum processing tasks from the computer's CPU to the network card. The DXE-810S/DXE-810T's ability to handle the checksum processing means that the CPU's processing power can be used for other tasks while still achieving 10 Gbps network speeds.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DXE-810T
Product Name:
PCI Express 10 Gigabit Ethernet Adapter
Packaged Quantity:
1
Product Type:
10Gigabit Ethernet Card

Interfaces/Ports

Host Interface:
  • PCI Express 2.0 x16
Total Number of Ports:
1
Number of Network (RJ-45) Ports:
1

Media & Performance

Media Type Supported:
  • Twisted Pair

Network & Communication

Network Technology:
  • 10/100/1000Base-TX

Physical Characteristics

Form Factor:
Plug-in Card
Height:
21.6 mm
Width:
133.3 mm
Depth:
121.9 mm

Miscellaneous

Device Supported:
  • Server
Country of Origin:
  • China
