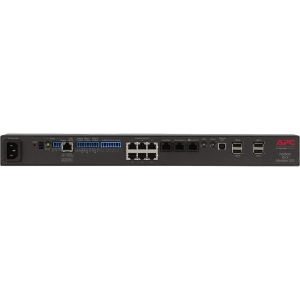

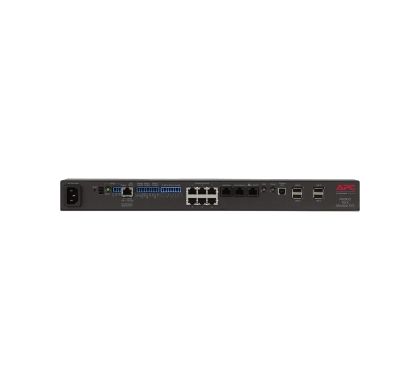

APC NetBotz Environmental Monitoring System

NBRK0570

This product has been discontinued by the manufacturer

Please visit

APC Environmental Monitoring Systems

for alternative options.

Description

Supports up to 4 external camera pods, 12 sensor pods and up to 78 Universal Sensors.

Includes: Country-specific detachable power cord, Documentation CD, Installation guide, Rack Mounting brackets, Temperature/Humidity Sensor, USB cable

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
NetBotz
Product Series:
500
Product Name:
NetBotz Rack Monitor 570
Product Type:
Environmental Monitoring System

Physical Characteristics

Form Factor:
Rack-mountable
Height:
114 mm
Width:
527 mm
Depth:
163 mm
Weight (Approximate):
1.74 kg

Miscellaneous

Package Contents:
  • NetBotz Rack Monitor 570
  • Country-specific Detachable Power Cord
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
  • Temperature/Humidity Sensor
  • USB Cable
  • Lithium Battery
Additional Information:
  • Operating Environment: 0 - 45 °C
  • Storage Temperature: -15 - 65 °C
  • Operating Relative Humidity: 0 - 95%
  • Storage Relative Humidity: 0 - 95%
  • Operating Elevation: 0-3000 meters
  • Storage Elevation: 0-15000 meters
  • Number of Universal Sensor Ports: 6
  • Number of Sensor Pods Supported: 12
  • Camera Resolution: Up to 1280x1024
  • Camera Frame Rate: Up to 30fps
  • Number of Cameras Supported: 4 Networked, 4 USB
  • Number of Universal Sensors Supported: 72
  • Protocols: DHCP, DNS, HTTP, HTTPS, SMTP, SOCKS, TCP/IP
  • Network Interface Connections: RJ-45 10/100 Base-T
  • External Sensor Connection Type: 4 4-20mA Sensor Inputs, 1 Alarm Beacon, 1 Fluid Rope Leak Sensor, 2 Relay Outputs
  • APC Universal Sensors Supported: 0-5V, Door Contact, Dry Contact, Humidity, Smoke, Fluid Spot Leak, Temperature, Vibration
Compatibility:
Cameras Supported:
  • Analog CCTV Cameras via USB CCTV Adapter Pod
  • NetBotz USB Camera Pod
  • NTSC
  • PAL
  • Pelco IP110-CHV9
  • Pelco IP3701H-2
  • Pelco IPSD4N-W0

Sensor Pods Supported:
  • 4 - 20mA Sensor
  • Camera Pod 120
  • CCTV Adapter Pod 120
  • Rack Sensor Pod 150
  • Room Sensor Pod 155
  • Sensor Pod 120

Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
2 Year
