SAMSUNG SyncMaster S24B420BW 61 cm (24") LED LCD Monitor - 16:10 - 5 ms

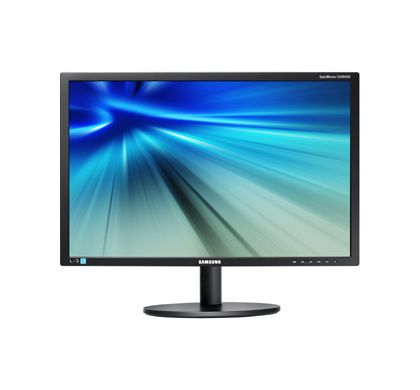

SAMSUNG SyncMaster S24B420BW 61 cm (24") LED LCD Monitor - 16:10 - 5 ms Front
LS24B420BWV/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Displays

for alternative options.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Family:
SyncMaster
Product Series:
B420BW
Product Model:
S24B420BW
Product Name:
SyncMaster S24B420BW LCD Monitor
Product Type:
LCD Monitor

Technical Information

Number of Screens:
1
Screen Size:
61 cm (24")
Screen Mode:
WUXGA
Response Time:
5 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Adjustable Display Height:
Yes
Display Orientation:
Portrait
Mount Type:
  • Arm-mountable
  • Wall Mountable
Backlight Technology:
LED
Features:
  • Security Lock
  • Eco Saving
  • MagicAngle
  • MagicColor
  • MagicBright
  • MagicTune
  • MagicRotation

Video

Maximum Resolution:
1920 x 1200
Standard Refresh Rate:
60 Hz
Colour Support:
  • 16.7 Million Colours
Contrast Ratio:
  • 1,000:1
Brightness:
  • 250 cd/m²

Interfaces/Ports

DVI:
Yes
VGA:
Yes

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
30 W
Standby Power Consumption:
300 mW
Off-Mode Power Consumption:
300 mW

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Colour:
  • Matte Black
Height:
61.0 mm
Width:
556.0 mm
Depth:
361.0 mm
Height with Stand:
493 mm
Width with Stand:
556 mm
Depth with Stand:
221 mm
Weight with Stand (Approximate):
4.40 kg

Miscellaneous

Package Contents:
  • SyncMaster S24B420BW LCD Monitor
  • Warranty Card
  • User Manual
  • Power Cable
  • Stand
  • Quick Setup Guide
Certifications & Standards:
Eco-Label Certification:
  • UL
  • UL 60950 1CSA
  • CSA C22.2 No. 60950-1 TUV
  • EN60950-1NEMKO
  • EN60950-1
  • KC (Korea)
  • K60950-1 CCC
  • 2001PSB GB-4943
  • IEC60950 1GOST
  • IEC60950-1
  • EN55022SIQ
  • IEC60950-1
  • EN55022PCBC
  • IEC60590-1
  • EN55022NOM
  • NOM-019-SCFI-1993IRAM
  • IEC60950 1SASO
  • IEC60950-1
EMC:
  • FCC Part 15
  • Subpart B Class ACE
  • EN55022
  • EN55024VCCI V-3 (CISPR22)
  • KCC
  • KN22
  • KN24C-Tick AS / NZS3548 (CISPR22)
  • CCC
  • GB 9254-2008
  • GB 17625.1-2003
Platform Supported:
  • PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star
  • EPEAT Gold
  • TCO Displays 5.0
  • WEEE

Warranty

Standard Warranty:
3 Year
