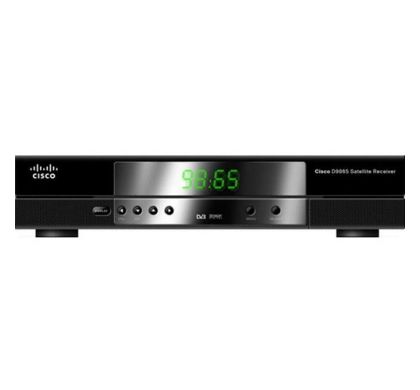

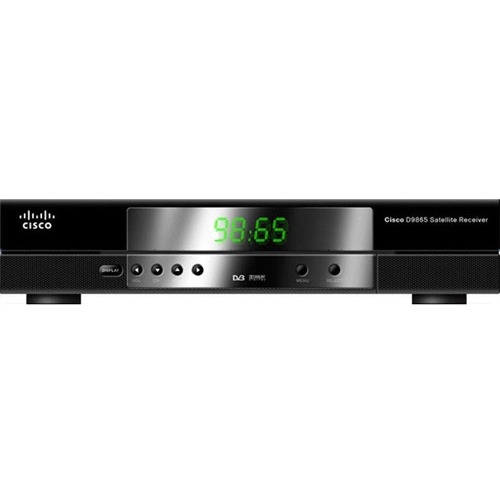

CISCO D9865 Satellite Receiver

CISCO D9865 Satellite Receiver
D9865-H-NTSC-NA

This product has been discontinued by the manufacturer

Please visit

CISCO Satellite Receivers

for alternative options.

Description

The Cisco® D9865 Satellite Receiver is designed for satellite content distribution, and targets the broadcast, business TV, private networks, and SMATV environment. The receiver offers the ability to receive digitally encrypted video, audio, VBI, and data. It provides a cost-effective, variable-rate solution to transition existing DVB®-S/MPEG-2 services to DVB-S2/MPEG-4. It also supports MPE IP data.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
D9865
Product Name:
D9865 Satellite Receiver
Product Type:
Satellite Receiver

Technical Information

Frequency Range:
950 MHz to 2150 MHz
Modulation:
  • QPSK
  • 8PSK
Impedance:
75 Ohm
Content Security:
PowerVu

Video

Video Formats:
  • MPEG-4
  • MPEG-2
  • MPEG-1
Digital Tuner:
  • DVB
  • DVB-S
  • DVB-S2
Analog Tuner:
  • NTSC
  • PAL
Video Signal Standard:
HDTV

Audio

Audio Formats:
  • HE-AAC
  • MPEG-4 AVC
Sound System:
  • Dolby Digital
  • Dolby Digital Plus
Audio Decoding:
  • Mono
  • Stereo

Interfaces/Ports

Component Video:
Yes
Number of Component Video Outputs:
1
HDMI:
Yes
Network (RJ-45):
Yes

Network & Communication

Ethernet:
Yes
Ethernet Technology:
  • Fast Ethernet
Wi-Fi:
No

Power Description

Operating Power Consumption:
35 W

Physical Characteristics

Height:
6 cm
Width:
29.7 cm
Depth:
19.5 cm
Weight (Approximate):
2.27 kg
