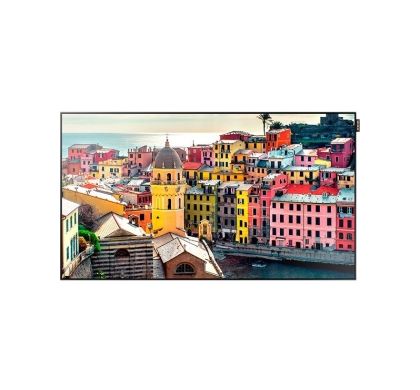

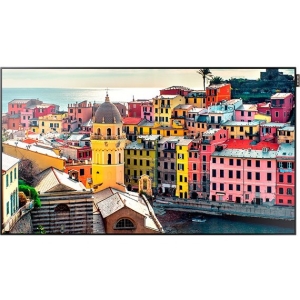

Samsung UE46D 116.8 cm (46")LCD Digital Signage Display

Samsung UE46D 116.8 cm (46")LCD Digital Signage Display
LH46UEDPLGC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

The Samsung UE46D features a stylishly thin chassis with a slim 11mm bezel to bezel (BtB) spec, combined with an upgraded Samsung SMART Signage Platform. Create beautiful video walls in full HD with no PC, DVD or SBB required. Built-in WiFi allows for easy mobile control and increased Daisy Chain capability, while compatibility with our predecessor UE46C model provides versatile options.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com
Brand Name:
Samsung
Product Series:
UE-D
Product Model:
UE46D
Product Name:
UE46D - UE-D Series 46" Edge-Lit LED Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Ultra Slim
  • Smart Scheduling
  • Button Lock
  • Picture by Picture (PbP)
  • Picture in Picture
  • Lamp Error Detection
  • Plug and Play
  • Temperature Sensor
  • Video Wall
  • Pivot Display
  • Ambient Light Sensor

Processor & Chipset

Processor Type:
Cortex A9
Processor Speed:
1 GHz

Memory

Standard Memory:
  • 1 GB
Memory Technology:
DDR3 SDRAM
Memory Card Supported:
  • Secure Digital (SD) Card

Display & Graphics

Screen Size:
116.8 cm (46")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Edge LED
HDCP Supported:
Yes

Audio

Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W

Video

Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
4,000:1
Brightness:
  • 450 cd/m²

Network & Communication

Ethernet:
Yes
Ethernet Technology:
  • Ethernet
Wi-Fi:
Yes

Interfaces/Ports

USB:
Yes
USB Standard:
USB 2.0
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes

Software

Operating System:
Linux

Power Description

Input Voltage:
  • 230 V AC
  • 120 V AC
Power Consumption:
  • 132 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Height:
584.2 mm
Width:
1031.2 mm
Depth:
30.5 mm
Weight (Approximate):
9.98 kg

Miscellaneous

Certifications & Standards:
EMC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • Energy Star

Warranty

Standard Warranty:
3 Year
