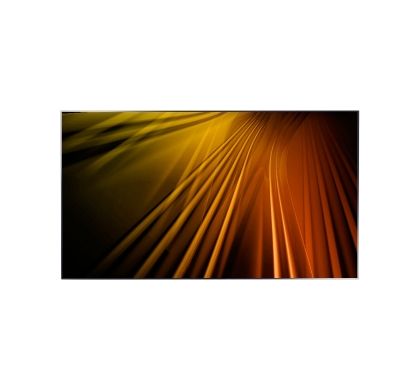

SAMSUNG UE46A 116.8 cm (46") Digital Signage Display - LCD 800 MHz - 1 GB DDR3 SDRAM - Ethernet

LH46UEAPLGC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

The Samsung UE46A LED LFD contiues to bring new experiences to your professional Video Wall displays. The sleek design allows this product to be slimmer than before, with narrower bezels to catch the eyes of your customers and minimize the loss of images in between each of the assembled LFDs. Such design has brought these to be light weigted, allowing easy installation and efficient space management. Reduced heat lowers the energy consumption and also provides more space for your employees to work without being exposed to great amount of heat. Enhanced readiblity provides better picture quality and our Internal Player is capable of running various contents without the need of any additional equipment.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Model:
UE46A
Product Name:
46" LED Slim Video Wall Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Plug and Play
  • Video Wall

Processor & Chipset

Processor Speed:
800 MHz
L2 Cache:
512 KB

Memory

Standard Memory:
  • 1 GB
Memory Technology:
DDR3 SDRAM

Display & Graphics

Screen Size:
116.8 cm (46")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
4 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED

Audio

Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W

Video

Scan Format:
1080p
Standard Refresh Rate:
75 Hz
Frame Refresh Rate:
240 Hz
Native Contrast Ratio:
5,000:1
Brightness:
  • 420 cd/m²

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Height:
585.0 mm
Width:
1030.4 mm
Depth:
29.9 mm
Weight (Approximate):
12.00 kg

Miscellaneous

Additional Information:
    • Power Consumption On Mode: 160 W (Max) / 140 W (Typ)
    • Power Consumption Off Mode: Less than 1 W
Certifications & Standards:
Safety:
  • UL 60950-1
  • CSA: CSA C22.2 No. 60950-1
  • TUV: EN60950-1
  • NEMKO: EN60950-1
  • KC: K60950-1
  • CCC: GB 4943-2001
  • PSB: IEC60950-1
  • GOST: IEC60950-1, EN55022
  • SIQ: IEC60950-1, EN55022
  • PCBC: IEC60590-1, EN55022
  • NOM: NOM-019-SCFI-1993
  • IRAM: IEC60950-1
  • SASO: IEC60950-1
EMC:
  • FCC Part 15, Subpart B class
  • BCE: EN55022, EN55024
  • VCCI: V-3 (CISPR22)
  • KCC: KN22, KN24
  • BSMI: CNS13438 (CISPR22)
  • C-Tick: AS / NZS3548 (CISPR22)
  • CCC: GB 9254-2008, GB 17625.1-2003
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star 5.0
