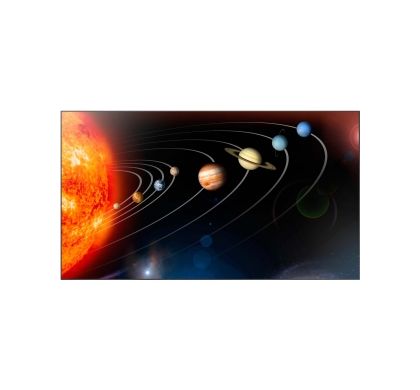

Samsung UD55C-B 139.7 cm (55")LCD Digital Signage Display

Samsung UD55C-B 139.7 cm (55")LCD Digital Signage Display
LH55UDCBLBB/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

Optimise your viewing experience with the dynamic Samsung UD55C-B displays

The UD55C-B Series is an excellent solution for video wall applications Offering practically 24/7 operation, a 5.5mm image to image bezel gap and brightness of up to 500candela, the display suits many applications where high ambient light is not an issue. With Samsung's Advanced Colour Management support, colour consistency and uniformity can be adjusted. Samsung's Advanced Colour Management Software is available from Samsung at no charge. Use the semi modular Samsung WMN4675MD wall mount i (sold separately) to help simplify installation of an array of displays in either portrait or landscape. One (1) mount is required for each display.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com
Brand Name:
Samsung
Product Series:
UDC-B
Product Model:
UD55C-B
Product Name:
55" Large Format Display (UD55C-B)
Product Type:
Digital Signage Display

Technical Information

Features:
  • Smart Scheduling
  • Button Lock
  • Pivot Display
  • Picture by Picture (PbP)
  • Landscape/Portrait Viewable
  • Video Wall
  • Lamp Error Detection
  • Anti-retention
  • Temperature Sensor
  • Plug and Play
  • Picture in Picture

Display & Graphics

Screen Size:
139.7 cm (55")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED

Video

Scan Format:
1080p
Dynamic Contrast Ratio:
10,000:1
Native Contrast Ratio:
3,500:1
Brightness:
  • 500 cd/m²

Network & Communication

Ethernet:
Yes
Ethernet Technology:
  • Ethernet

Interfaces/Ports

DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Consumption:
  • 165 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 400
Height:
686.1 mm
Width:
1215.3 mm
Depth:
113.8 mm
Weight (Approximate):
24.30 kg

Miscellaneous

Certifications & Standards:
EMC:
  • FCC (USA): Part 15, Subpart B Class A
  • KCC / EK (Korea): KN22 / 24
  • CE (Europe): EN55022: 2006+A1: 2007 EN55024: 1998+A1: 2001+A2: 2003 EN61000-3-2: 2006+A1: 2009+A2: 2009 EN61000-3-3: 2008
  • VCCI (Japan): VCCI V-3 /2010.04 Class A
  • CCC (China): GB9254-2008 (CISPR22) Class A GB17625.1-2003
  • BSMI (Taiwan): CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)
  • C-Tick (Australia): AS / NZS CISPR22: 2009
Safety:
  • CB (Europe): IEC60950-1 / EN60950-1
  • UL (USA) / CSA (Canada): UL60950-1, CSA C22.2 No. 1
  • CCC (China): GB 8898-2001
  • PSB (Singapore): PSB+IEC60950-1
  • NOM (Mexico): NOM-019-SCFI-1998
  • KC (Korea): K60950-1
  • IRAM (Argentina): IRAM+IEC60950-1
  • GOST (Russia): GOST+IEC60950-1
  • SASO (SaudiArabia ): SASO+IEC60950-1
  • BSMI (Taiwan): BSMI+IEC60950-1
  • TUV (Germany): EN60950-1
  • NEMKO (Norway): EN60950-1
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star 6.0

Warranty

Standard Warranty:
3 Year
