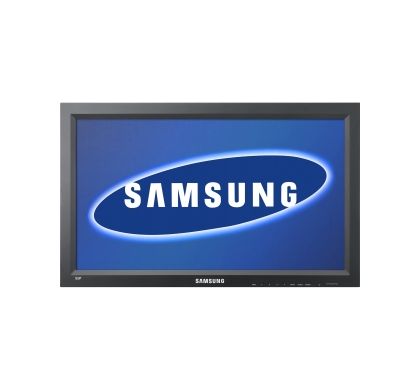

SAMSUNG SyncMaster 320MXN-3 81.3 cm (32") Digital Signage Display - LCD - AMD Athlon X2 235e 2.70 GHz - 1 GB DDR3 SDRAM - 40 GB HDD - Gigabit Ethernet

LH32HBSLBC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

Create a professional digital display without having to purchase any extras-like a distributor or external equipment. Samsung LFDs feature an upgraded Multi Display Control solution that lets you control a large number of monitors through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control monitors over short and long distances. Keep your monitor running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. Create the ultimate video wall with Samsung LFDs that cater to your needs. Maximize your impact with a great picture and crisp audio. This Samsung LFD gives you the flexibility to display your image vertically or horizontally-whatever the situation calls for. Whether your presentation requires a picture-in-picture configuration or a picture-by-picture arrangement, this Samsung LFD makes it possible. Samsung's network management software features two types: a Wan/Lan-based for local access and a web-based software accessible anywhere. MagicInfo lets you access your server and LFDs everywhere in the world. Control multiple monitors without having to install and run wires to a separate PC. When a monitor is displayed in public areas, things can happen. Whether you have a story to tell or a product to sell, it's important that your image is crystal clear. This Samsung LFD LFD makes upgrading firmware easy.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Family:
SyncMaster
Product Series:
MX
Product Model:
320MXN-3
Product Name:
SyncMaster 320MXN-3 Digital Signage Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Temperature Sensor
  • Pivot Display
  • Picture in Picture
  • Video Wall
  • Button Lock
  • Anti-retention
  • Lamp Error Detection

Processor & Chipset

Processor Manufacturer:
AMD
Processor Type:
Athlon X2
Processor Model:
235e
Processor Speed:
2.70 GHz

Memory

Standard Memory:
  • 1 GB
Memory Technology:
DDR3 SDRAM

Storage

Total Hard Drive Capacity:
40 GB

Display & Graphics

Screen Size:
81.3 cm (32")
Display Screen Type:
LCD
Display Resolution:
1366 x 768
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°

Audio

Speakers:
Yes
RMS Output Power:
10 W

Video

Dynamic Contrast Ratio:
6,000:1
Native Contrast Ratio:
3,500:1
Brightness:
  • 450 cd/m²

Software

Operating System:
Windows Embedded Standard 2009

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 200
Height:
482.0 mm
Width:
780.0 mm
Depth:
109.0 mm
Weight (Approximate):
15.10 kg

Miscellaneous

Additional Information:
    • Display Colours: 8 bit - 16.7 M
    • Power Consumption: 177 W Typical
    • Power Consumption Standby: Under 5 W
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star

Warranty

Standard Warranty:
3 Year
