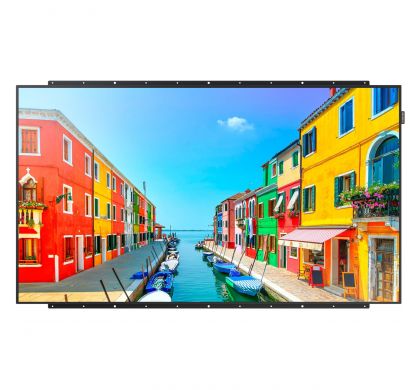

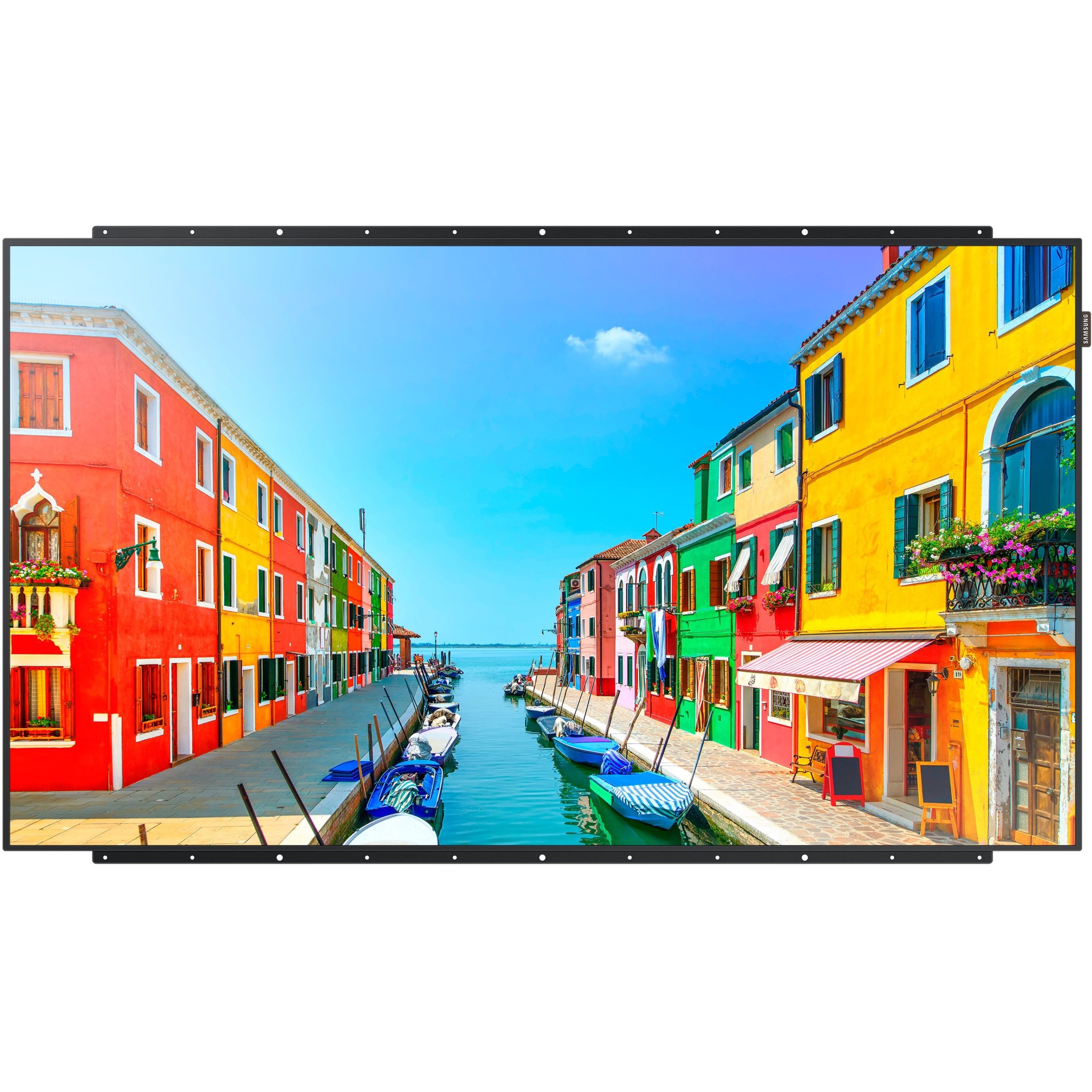

SAMSUNG OM55D-K 139.7 cm (55")LCD Digital Signage Display

LH55OMDPKBC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

Deliver promotional messaging vividly with excellent visibility

The OM55D-K is specifically designed to be integrated with encasements custom designed by third parties. Samsung technicians can advise on the requirements for ventilation and ingress protection for proposed indoor and outdoor applications.

Key Features:

  • up to 2500 candela brightness with 5000:1 contrast ratio
  • up to 24/7 operation
  • Auto Brightness sensor 400 candela to 2500 candela
  • 2nd Generation Samsung SMART Signage Platform
  • Designed for compatible 3rd party encasements/enclosures

Deliver promotional messaging vividly with great visibility

Optimize brightness control while reducing display operating expenses and power consumption with an automatic brightness sensor. You can customize the maximum and minimum brightness within a range of 350-nit to 2,500-nit brightness to complement any environment and control expenses, while extending the life of the monitor.

Display content with variable brightness for different ambient light conditions

Control brightness with an automatic brightness sensor. You can customise the maximum and minimum brightness within a range of 400 to 2,500 candela brightness to complement various lighting conditions.

Simulated graphic to depict the variable brightness controlled by the in-built auto brightness sensor. Image shows display in an outdoor environment. The Samsung OMD-K series requires a third party designed customised encasement with IP rating IP56 or higher to be used in outdoor environments. Refer to the specifications for minimum and maximum operating temperatures.

Business performance with Samsung's 2nd Generation SSSP

The embedded, all-in-one 2nd Generation SSSP eliminates the need for a separate PC or media player, to streamline digital signage operation. Content deployment can be simple by using the USB plug-and-play feature. Attach your compatible USB device with your content (sold separately), for an easy plug-and-play content solution.

Easily and professionally manage content from a mobile device

The 2nd generation Samsung Smart Signage Platform (SSSP) takes Samsung dynamic signage to another level. Included in the Samsung OM75D-K, the 2nd generation SSSP offers quad core System on Chip (SoC) technology, helping to deliver power and functionality for signage applications

  • MagicInfo™ Player S2 embedded System on Chip (SoC) technology.
  • Able to be used as a Stand-Alone Signage Solution.
  • Array of Design Templates included.
  • PC-less touch option using on-board SoC and optional Touch Module (sold separately).
  • Scalable for networked server based signage applications with MagicInfo™ S2 server/ client access software licence.

Manage digital signage wirelessly, using a compatible mobile device

With a convenient built-in Wi-Fi module, users can control and wirelessly distribute content to the digital signage solution in the display using compatible mobile devices. The ability to send and schedule content from a compatible mobile device helps manage content. Simply download the MagicInfo app to your compatible mobile device from Google Play Store or the Apple App Store and use your existing Wi-Fi infrastructure to connect and deliver content to your display.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Series:
OMD-K
Product Model:
OM55D-K
Product Name:
OM55D-K Digital Signage Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Progressive Scan
  • Ambient Light Sensor
  • Brightness Sensor
  • Media Player
  • Plug and Play
  • Daisy Chain
  • Lamp Error Detection
  • Anti-image Retention
  • Temperature Sensor
  • Picture in Picture
  • Picture by Picture (PbP)
  • Video Wall
  • Portrait Capable
  • Button Lock
  • Smart Scheduling

Processor & Chipset

Processor Manufacturer:
ARM
Processor Type:
Cortex A9
Processor Speed:
1 GHz
L2 Cache:
1 MB

Memory

Standard Memory:
  • 1.50 GB
Memory Technology:
DDR3 SDRAM

Display & Graphics

Screen Size:
139.7 cm (55")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Graphics Modes:
Full HD
Response Time:
6 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED


Image Formats:
  • JPEG
  • PNG

Audio

Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W
Sound System:
  • DTS

Video

Video Formats:
  • MPEG-1
  • MPEG-2
  • H.264/MPEG-4 AVC
  • VC-1
  • MPEG
Scan Format:
1080p
Standard Refresh Rate:
75 Hz
Dynamic Contrast Ratio:
5,000:1
Brightness:
  • 2500 cd/m²

Network & Communication

Ethernet:
Yes
Ethernet Technology:
  • Ethernet
Wi-Fi:
Yes

Interfaces/Ports

USB:
Yes
USB Standard:
USB 2.0
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes

Software

Operating System:
Linux

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Power Consumption:
  • 495 W

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 400
Height:
69.8 cm
Width:
122.7 cm
Depth:
14.3 cm
Weight (Approximate):
22.40 kg

Miscellaneous

Package Contents:
  • OM55D-K Digital Signage Display
  • Quick Setup Guide
  • Regulatory Guide
  • Warranty Card
  • D-Sub cable
  • Power Cord
  • Remote Controller
  • Batteries
Certifications & Standards:
Safety;
  • UL (USA) : UL 60950-1
  • CSA (Canada) : CSA C22.2 No. 60950-1
  • TUV (Germany) : EN60950-1
  • NEMKO (Norway) : EN60950-1
  • KC (Korea) : K60950-1
  • CCC (China) : GB4943.1-2011
  • PSB (Singapore) : IEC60950-1
  • GOST (Russia) : IEC60950-1, EN55022
  • SIQ (Slovenia) : IEC60950-1, EN55022
  • PCBC (Poland) : IEC60590-1, EN55022
  • NOM (Mexico) : NOM-019-SCFI-1998
  • IRAM (Argentina) : IEC60950-1
  • SASO (Saudi Arabia) : IEC60950-1
EMC:
  • FCC (USA) : Part 15, Subpart B Class A
  • CE (Europe) : EN55022, EN55024
  • VCCI (Japan) : V-3 (CISPR22)
  • KCC (Korea) : KN22, KN24
  • BSMI (Taiwan) : CNS13438 (CISPR22)
  • C-Tick (Australia) : AS/NZS3548 (CISPR22)
  • CCC (China) : GB9254-2008, GB17625.1-2012
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • TÃœV

Warranty

Standard Warranty:
3 Year
