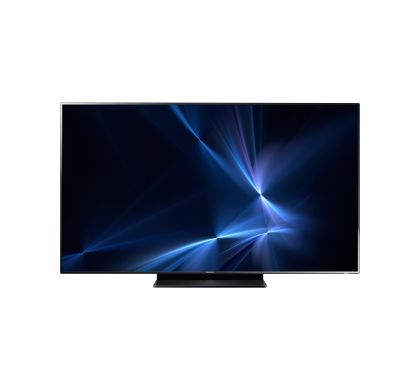

SAMSUNG ME65B 165.1 cm (65") Digital Signage Display - LCD Cortex A8 DDR3 SDRAM - Ethernet

LH65MEBPLGC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

Edge LED technologySamsung Edge LED solution utilises LED lamps around the edge of the panel so the LEDs emit light on the side of the panel. This results in a much thinner screen that requires fewer lamps meaning reduced power consumption and less heat generated.Slim and light designYou'll find the new Samsung LED LFD is lighter than previous LFD models. Yet it offers heavy weight communication solutions for any modern business looking to convey concise marketing or educational messages.With a quick and easy installation, setting up your business LFD can be achieved in minutes and with the inimum of fuss. Its lightweight design means that it requires less support to hold it up, and can also be conveniently moved about with its easy-to-carry dimensions. The edge type design allows the unique slimness, which means less space is needed for the unit. This innovative thinking is all wrapped up in a contemporary design that will also add a touch of sophistication to your overall messaging.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Series:
ME
Product Model:
ME65B
Product Name:
ME65B Digital Signage Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Media Player
  • Ambient Light Sensor
  • Landscape/Portrait Viewable
  • Video Wall
  • TileMatrix (10x10)

Processor & Chipset

Processor Type:
Cortex A8
L2 Cache:
512 KB

Memory

Memory Technology:
DDR3 SDRAM

Display & Graphics

Screen Size:
165.1 cm (65")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
5.50 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
89°
Vertical Viewing Angle:
89°
Backlight Technology:
Edge LED


Image Formats:
  • JPEG
  • PNG

Audio

Audio Formats:
  • AC3
Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W

Video

Video Formats:
  • MPEG-1
  • MPEG-2
  • VC-1
  • H.264/MPEG-4 AVC
Scan Format:
1080p
Standard Refresh Rate:
75 Hz
Dynamic Contrast Ratio:
100,000:1
Native Contrast Ratio:
5,000:1
Brightness:
  • 450 cd/m²

I/O Expansions

Expansion Slot Type:
  • PCI Express

Software

Operating System:
Linux

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Height:
855.5 mm
Width:
1480.5 mm
Depth:
32.2 mm
Weight (Approximate):
25.10 kg

Miscellaneous

Certifications & Standards:
EMC:
  • FCC Part 15 Subpart B Class
  • ACE: EN55022, EN55024
  • VCCI
  • V-3 (CISPR22)
  • KCC: KN22, KN24
  • BSMI: CNS13438 (CISPR22)
  • C-Tick : AS/NZS3548 (CISPR22)
  • CCC: GB 9254-2008, GB 17625.1-2003
Safety:
  • CUL: UL60950
  • TUV: EN60950
  • CB: IEC60950/EN60950
  • EK: K60950
  • CCC: GB8898
  • PSB: IEC60950
  • GOST: IEC60950, EN55022
  • SIQ: IEC60950, EN55022
  • PCBC : IEC60950, EN55022
  • NOM: NOM-001-SCFI-1993
  • IRAM
  • SASO: IEC60950
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star 5.0
