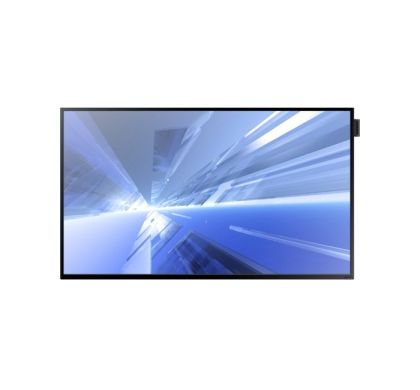

Samsung DB40D 101.6 cm (40")LCD Digital Signage Display
This product has been discontinued by the manufacturer
Please visit
SAMSUNG Digital Signage Systemsfor alternative options.
Description
The Samsung DB40D delivers advanced display technology in an affordable fashion. Create stunning and seamless video walls in full HD resolution thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. Combined with a sleek industrial design and slim 2" chassis depth, you can captivate your audience in a moment and leave a lasting impression on the 40" screen.
Specifications
General Information
Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com
Brand Name:
Samsung
Product Series:
DB-D
Product Model:
DB40D
Product Name:
DB40D - DB-D Series 40" Slim Direct-Lit LED Display
Product Type:
Digital Signage Display
Technical Information
Features:
- Button Lock
- Smart Scheduling
- Plug and Play
- Picture by Picture (PbP)
- Picture in Picture
- Video Wall
- Pivot Display
- Lamp Error Detection
- Temperature Sensor
- Ambient Light Sensor
Processor & Chipset
Processor Type:
Cortex A9
Processor Speed:
1 GHz
Memory
Standard Memory:
- 1.50 GB
Memory Technology:
DDR3 SDRAM
Memory Card Supported:
- Secure Digital (SD) Card
Display & Graphics
Screen Size:
101.6 cm (40")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
Audio
Speakers:
Yes
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Dynamic Contrast Ratio:
5,000:1
Brightness:
- 350 cd/m²
Network & Communication
Ethernet:
Yes
Ethernet Technology:
- Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Software
Operating System:
Linux
Power Description
Input Voltage:
- 230 V AC
- 120 V AC
Power Consumption:
- 121 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 200
Height:
525.8 mm
Width:
906.8 mm
Depth:
50.8 mm
Weight (Approximate):
7.30 kg
Miscellaneous
Certifications & Standards:
EMC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- Energy Star
Warranty
Standard Warranty:
3 Year
