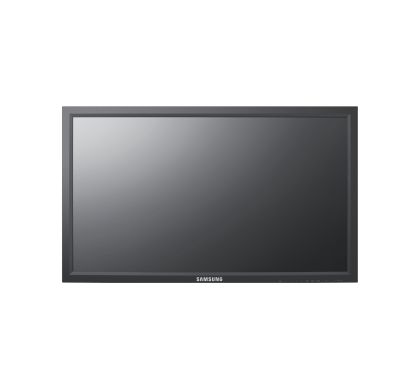

SAMSUNG 460MX-3 116.8 cm (46") Digital Signage Display - LCD

SAMSUNG 460MX-3 Digital Signage Display LH46HBPLBC/XY
LH46HBPLBC/XY

This product has been discontinued by the manufacturer

Please visit

SAMSUNG Digital Signage Systems

for alternative options.

Description

Imagine people paying greater attention to your information. Whether it's the classroom or the boardroom, the Samsung 460MX-3 46" LFD display can help. SAMSUNG S-PVA panel technology, HDMI input, 1080p Full HD support and built-in speakers make sure your message is seen as well as heard. And for even more impact, you can use the supplied Multi Display Control software and RS-232C interface to create huge video walls in configurations up to 10 by 10.

Specifications

General Information

Manufacturer:
Samsung
Manufacturer Website Address:
http://www.samsung.com/au
Brand Name:
Samsung
Product Model:
460MX-3
Product Name:
460MX-3 Digital Signage Display
Product Type:
Digital Signage Display

Display & Graphics

Screen Size:
116.8 cm (46")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC

Physical Characteristics

Height:
658.0 mm
Width:
1102.0 mm
Depth:
125.5 mm
Weight (Approximate):
22.80 kg

Miscellaneous

Package Contents:
  • 460MX-3 Digital Signage Display
  • Quick Setup Guide
  • Warranty Card
  • User's Guide
  • Power Cord
  • D-Sub Cable
  • Remote Control
  • 2 x AAA Batteries
    • Additional Information:
    Panel:
  • 0.53025 x 0.53025mm Pixel Pitch
  • 1018.08 x 572.67mm Active Display Area
  • 450 cd/m2 Panel Brightness (Typical)
  • 3000:1 Contrast Ratio
  • Panel Viewing Angle: 178˚ / 178˚
  • 8ms Panel Response Time
  • 16.7 million(8 bit) Display Colors
  • Color harmat (0.72)
    • Display:
  • 10000:1 Dynamic Contrast Ratio
  • 30 - 81kHz Horizontal Frequency
  • V-Scanning Frequency 56Hz - 85Hz
  • 148.5MHz Maximum Pixel Frequency
    • Power:
  • Power Type: Internal
  • 260Watts(Max)/233Watts(Typical) Power Consumption (On Mode)
  • Less than 2Watts Power Consumption (Sleep Mode)
  • Less than 1Watt Power Consumption (Off Mode)
    • Operation:
  • Operating Temperature 0℃ - 40℃
  • 10 - 80% Humidity
    • Feature:
  • Economy and Reliability
  • Lamp Error Detection
  • Anti Retention
  • Temperature Sensor
  • Built in Speaker(10Watts + 10Watts)
  • Plug and Play(DDC2B)
  • PIP/PBP
  • Video Wall(10 x 10)
  • Pivot Display
  • Button Lock
  • Smart Scheduling
  • Smart F/W Update
    • Certifications & Standards:
  • UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1
  • FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
