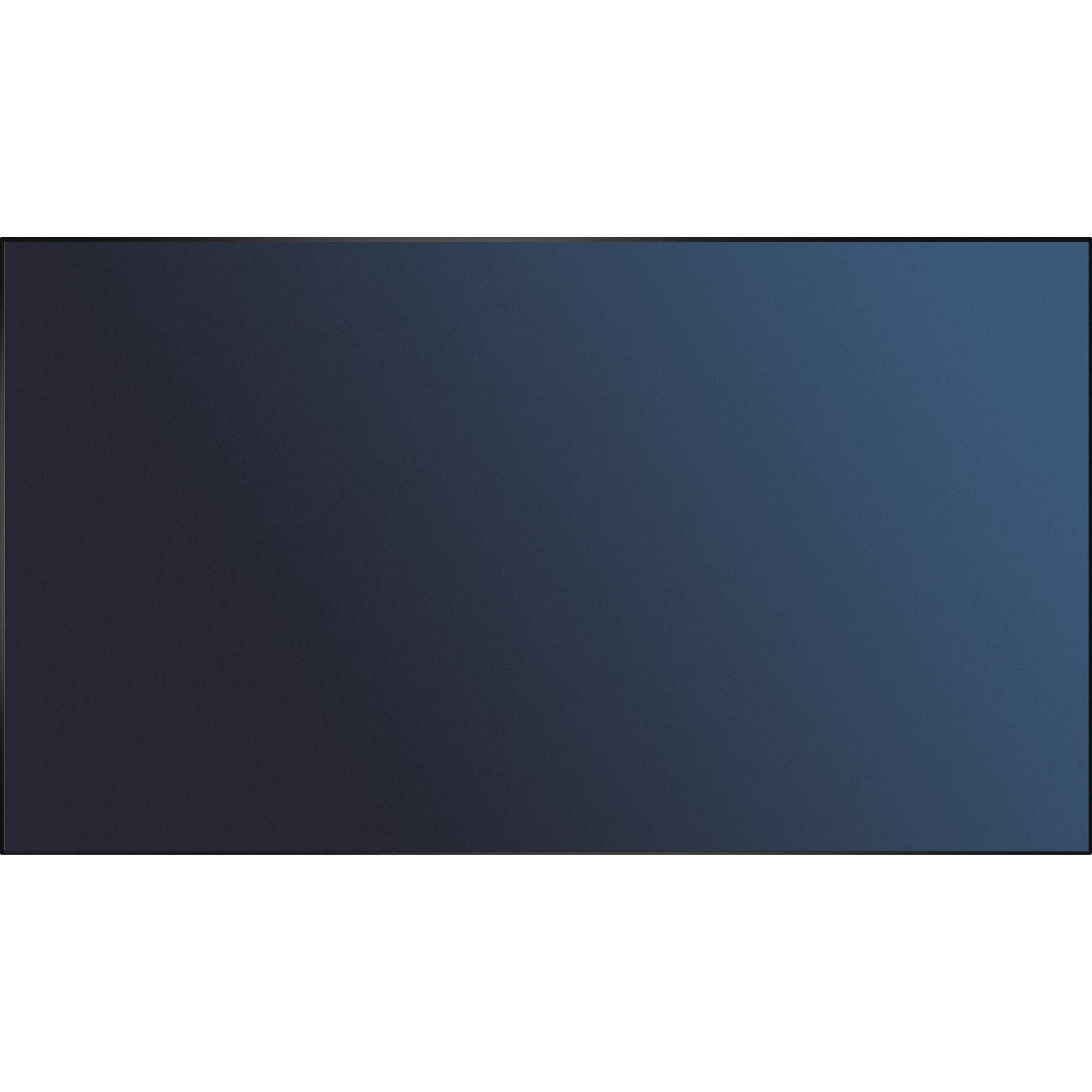

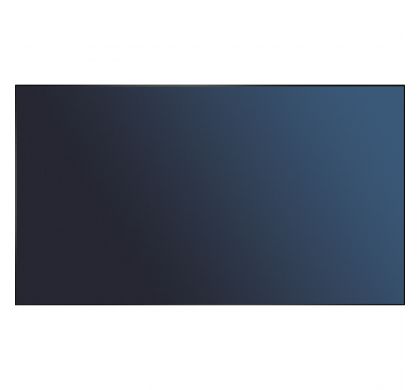

NEC Display X555UNS 139.7 cm (55")LCD Digital Signage Display
This product has been discontinued by the manufacturer
Please visit
NEC Digital Signage Systemsfor alternative options.
Description
The 55" NEC X555UNS utilizes S-IPS panel technology to provide a superior signage solution for building video walls. With excellent off-angle viewing and far less color shift than traditional video wall panels, this display is ideal for broadcast, retail and command and control applications. On top of that, these displays are designed for the rigors of 24/7 operation with advanced heat management capabilities in which internal temperature sensors automatically activate fan-based cooling if excess heat builds up within the unit. Other advanced technologies of this model include direct LED backlighting with localized dimming for improved brightness uniformity and higher dynamic contrast ratio. These displays are also capable of daisy-chaining UHD (3840 x 2160) resolution so that the entire video wall can be 4x that of FHD regardless of the size of the wall. With these features, a 3.5mm bezel gap between neighboring displays and commercial brightness of 700 nits, this display clearly showcases NEC's vast experience in the video wall market.
Specifications
General Information
Manufacturer:
NEC Display Solutions
Manufacturer Website Address:
http://www.necdisplay.com
Brand Name:
NEC Display
Product Model:
X555UNS
Product Name:
55" Ultra Narrow Bezel S-IPS Video Wall Display
Product Type:
Digital Signage Display
Technical Information
Features:
- Super In-plane Switching (S-IPS) Technology
- Video Wall
- Temperature Sensor
- Daisy Chain
- Open Pluggable Specification (OPS)
- Human Sensor
- Near Field Communication (NFC)
- Progressive Scan
- Landscape/Portrait Viewable
- Carbon Footprint Meter
- Plug and Play
- Schedule
- Screen Saver
- Ambient Light Sensor
- Side by Side
- Picture on Picture
- Noise Reduction
- TileMatrix Support
- Anti-glare
- Eco Mode
Display & Graphics
Screen Size:
139.7 cm (55")
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
12 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
HDCP Supported:
Yes
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
1,200:1
Brightness:
- 700 cd/m²
Network & Communication
Ethernet:
Yes
Ethernet Technology:
- Ethernet
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Power Description
Power Consumption:
- 205 W
Physical Characteristics
Colour:
- Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Height:
68.3 cm
Width:
121.4 cm
Depth:
9.7 cm
Weight (Approximate):
27.90 kg
Warranty
Standard Warranty:
3 Year
